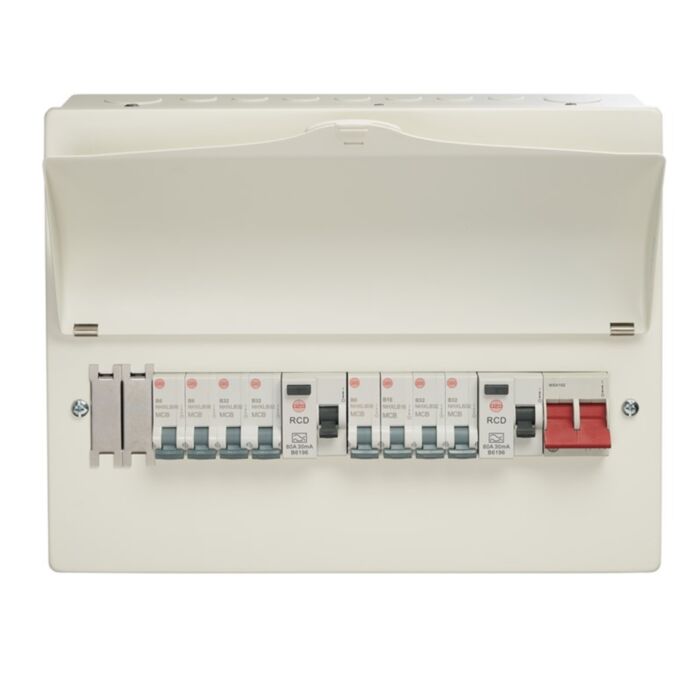

Wylex Metal Clad High Integrity Fully Loaded Flexible Configuration Consumer Unit 16 Module 10 Way

It is a versatile solution for domestic and commercial applications, offering enhanced protection and flexibility for electrical circuits.

Features:

• The consumer unit is a 10-way high-integrity consumer unit with a 100 amps main switch, 80 amps 30mA RCDs, and flexible configuration with 8 MCBs.
• It is possible to configure this board in 10 ways, either as a dual RCD or as a high-integrity board, with space for RCBOs.
• Main insulator with two terminals with a capacity of 100 amps 80 amps 30mA Type A RCDs.
• This curved visor has the capability of being temporarily locked if necessary.

Technical data:

• Brand - Wylex
• Product Type - High Integrity Fully Loaded Flexible Configuration Consumer Unit
• Depth - 121mm
• Height - 261mm
• Width - 438mm
• IP Rating - IP2XC
• Material - Steel
• Frequency - 50Hz
• Colour - White
• No. of Poles Main Switch - 2
• Main Switch Rated - 100Amp
• Module Spaces - 16
• Total Final Circuit Modular Ways - 10 Ways
• Main Switch Rating - 100Amp
• Main Switch Final Circuit Modular Ways - Flexible
• RCD 1 - 80Amp 30mA Type A
• RCD 1 Final Circuit Modular Ways - Flexible
• RCD 2 - 80Amp 30mA Type A
• RCD 2 Final Circuit Modular Ways - Flexible

Kit consists of:

• Populated with 8 Type B Miniature Circuit Breakers (3 x 6Amp, 1 x 16Amp, 4 x 32Amp) and 2 blanks.

Standards & Certifications:

• BS EN 61439-3.
• CE Conformity Certificate.
• WEEE Symbol Standard.
• UKCA Conformity.
