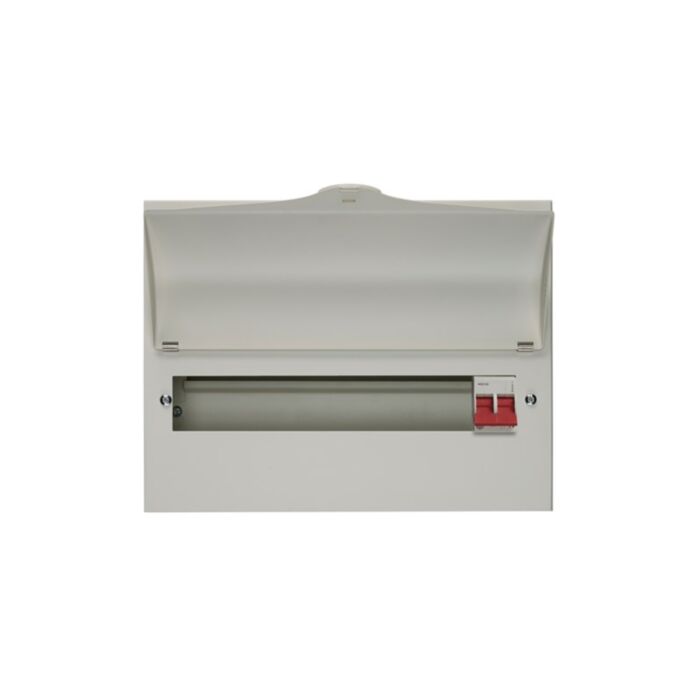

Is a consumer unit designed for domestic and residential applications. It has a metal enclosure, a 100A main switch isolator, and accepts the latest Wylex MCB and miniature RCBOs. The unit is fitted with a full metal DIN rail and a full complement of earth and neutral terminals.

Features:

• Consumer unit with an 14W main switch only.
• Includes a 100Amp main switch with twin line and neutral supply terminals as well as a 100Amp fixed busbar assembly.
• Accepts all Wylex miniature final circuit protection devices MCBs, RCBOs, and AFDDs.
• Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1.
• Featuring a curved visor and temporary locking facility, this enclosure is made of full metal.

Applications:

• Domestic properties.
• Residential Buildings.
• Commercial Premises.

Technical data:

• Brand - Wylex
• Product Type - Consumer Unit
• Depth - 121mm
• Width - 343mm
• Height - 261mm
• IP Rating - IP2XC
• Material - Steel
• Frequency - 50Hz
• Colour - White
• No. of Ways - 14
• No. of Poles Main Switch - 2
• Main Switch Rated - 100Amp

Standards & Certifications:

• BS EN 61439-3.
• CE Conformity Certificate.
• WEEE Symbol Standard.
• UKCA Conformity.

Please Note:

• There is no over voltage protection.
• The product is not recyclable and must be sent to separate collection facilities for recovery and recycling.
