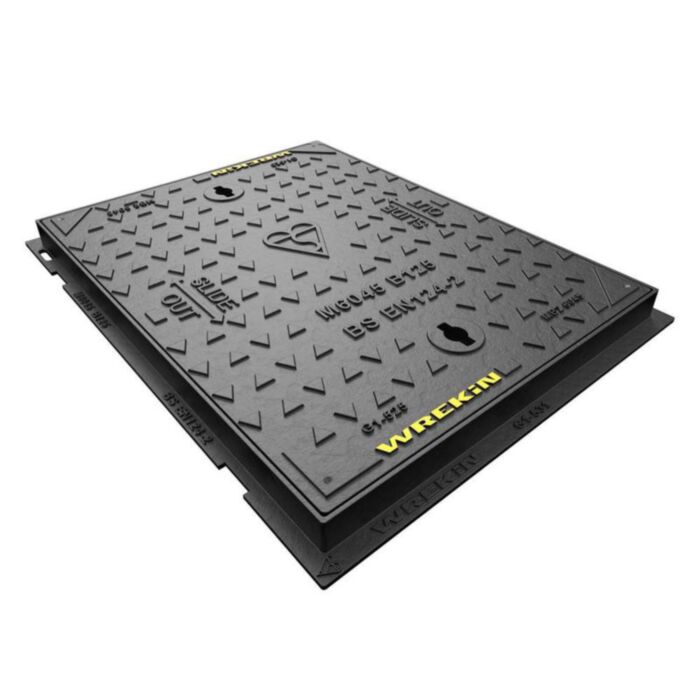

692mm x 530mm are the external dimensions of this Manhole Frame. For use in a Group 2 Class B125 environment as pavements or driveways.

Features:

• Designed to combine high strength and light weight.
• Manufactured from strong and highly durable ductile iron.
• Solid slide out cover designed for ease of removal.
• Unique corner design to ensure correct orientation of cover fit into frame.

Technical data:

• Brand - Wrekin
• Range - Safeseal
• Product Type - Manhole Cover
• Material - Ductile Iron
• Internal Width - 450mm
• Internal Length - 600mm
• External Depth - 40mm
• External Width - 530mm
• External Length - 690mm
• Clear Opening Width - 450mm
• Clear Opening Length - 600mm
• Loading - B125

Standards & Certifications:

• BS EN 124-2
• BSI Kitemark certified to BS EN124:1995
