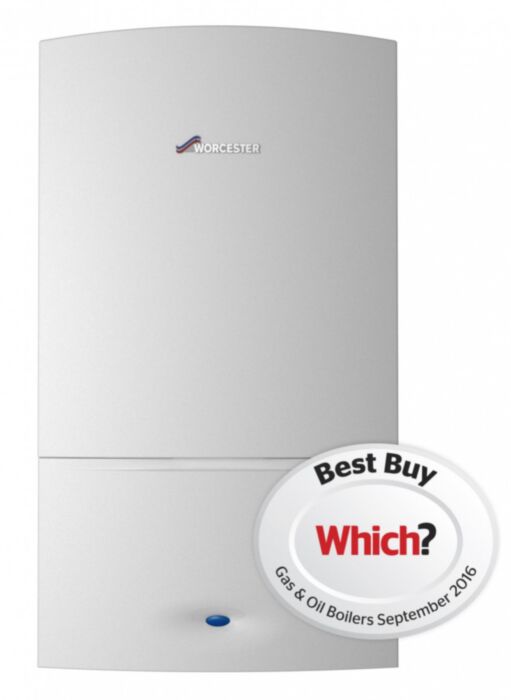

The newest addition to Worcester’s top-of-the-range CDi boiler series with DHW flow rates up to 14.7ltr / min.

Features:

• Suitable for small, medium and large-sized homes with one or two bathrooms, this boiler can be installed in a standard kitchen cupboard.
• New performance-enhancing features include an LCD display control panel and key components positioned to provide easy access.
• Low lift weight.
• Central heating flow and hot water temperatures can be adjusted using simple control knobs.
• Plug & play optional Worcester controls available.
• Commissioning information for easier completion of the Benchmark checklist.
• Clear operational information and diagnostic display.
• High efficiency and greater reliability with the innovative WB7 heat exchanger.
• Colour-coded wiring connectors for error free connection and removal.
• Compatible with CondenseSure accessory - Effective at preventing frozen condensate at -15°C for a sustained period of 48 hours (32mm pipework must be used and should not exceed 3 metres in length).
• Achieves an A+ ErP package efficiency rating for heating when installed with a Wave smart internet connected control.
• Scan and register the boiler using the Worcester FREE online registration app.

Technical data:

• Brand - Worcester-Bosch
• Range - Greenstar CDi Compact
• Product Type - Combi Boiler
• Colour - White
• Depth - 280mm
• Width - 390mm
• Height - 690mm
• ErP Rating - A
• Output - 24kW
• Weight - 32.9kg
• IP Rating - IPX4D
• Min. Pressure - 1.6Bar
• Maximum Horizontal Flue - 6000mm
• Maximum Vertical Flue - 6000mm
• Max DHW output - 28kW
• Hot Water Flow Rate (ltr / min) - 11.4 @ 35°C
• NOx Emissions - 35mg/kWh

Supplied with:

• Wall mounting jig providing pre-plumbing and rear piping
