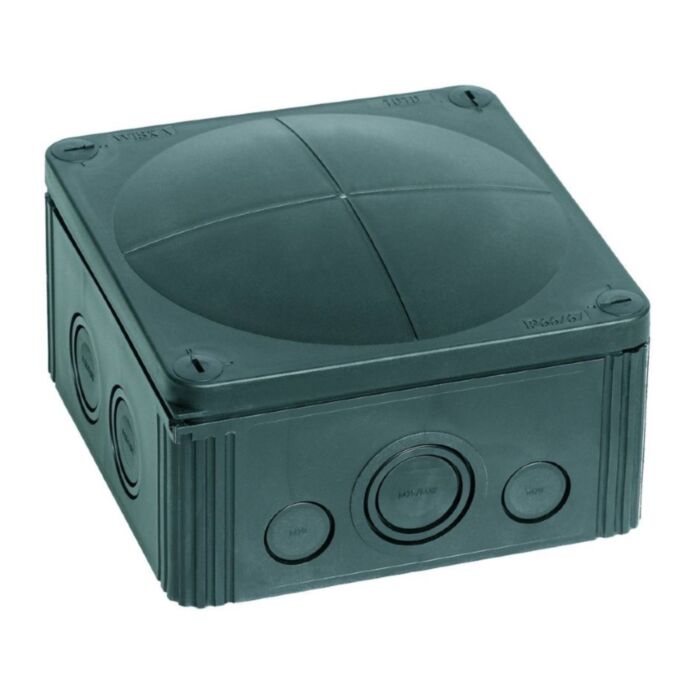

WISKA Junction Box COMBI 1010/5 IP66/IP67 Black 82x140x140mm

The junction box for inside and outside applications. With unique design and highest quality, meeting the most demanding installer requirements for years: The COMBI junction box series is an original in every aspect.

Features:

• High-quality material of the COMBI junction boxes is UV- and Ozone resistant, therefore suitable for inside as well as outside installations.
• With integrated thread in which cable glands can be directly mounted into, without locknuts.
• Self-sealing membranes on the rear enable a clean assembly for cable outputs from the wall.
• Solid thermoplastic housing.
• Captive and rust-free quick-release lid screws, closing of the box with only a quarter turn.
• External mounting to maintain IP rating of high protection class IP66. With cable gland even IP67.
• Flame retardant and halogen free.
• Bellied cover allows 10% more installation space.
• Labour saving due to minimal tools needed.
• IP66, using the QUIXX self sealing membrane screw.
• IP67, using the knockout entry together with ESKV cable gland.
• 10 knockouts side 5 x M25 / M32, 2 x M20, 3 x M20 / M32.
• 4 Knockouts in the bottom 2 x M25 / M32, 2 x M20 / M25.
• 4 Captive cover screws.
• Including QUIXX EMS self-sealing membrane screw 2 x M25, 1 x M32.
• Including terminal block 5 poles, 10mm².
• 4 Internal openings outside of the sealing area.

Technical data:

• Brand - WISKA
• Range - COMBI
• Product Type - Junction Box
• Material - Polypropylene (Box) / TPE (Sealing Gasket)
• Colour - Black
• Height - 82mm
• Width - 140mm
• Length - 140mm
• Cable Diameter - 6mm To 21mm
• Voltage - 690V
• AC Rating - 57A
• IP Rating - IP66 / IP67
• Terminals / poles - 5 pole, 10.0mm²
