Ultimate performance zinc-plated concrete screws for multiple use for non-structural applications in concrete and precast prestressed hollow core slabs

Features:

• A high-performance anchor with a unique tip and thread geometry that prevents concrete spalling, while providing very high load capacity, approved for use in precast prestressed hollow core slabs, and with up to 3 anchoring depths for maximum installation flexibility.

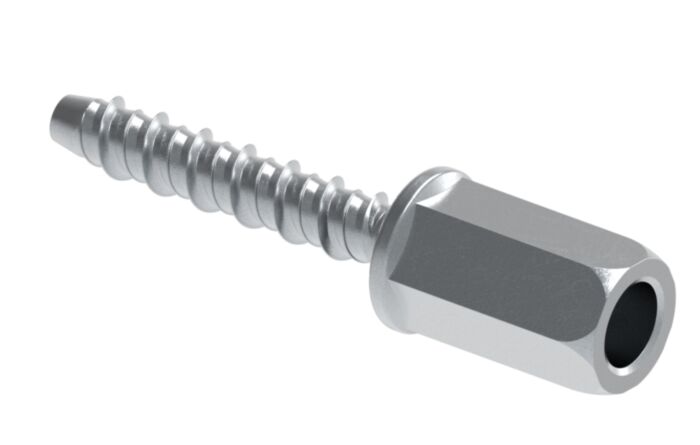

Unibody zinc-plated concrete screw with an internal M8/M10 thread.
• Unique tip and thread geometry prevents concrete spalling.
• Very high load capacity.
• Approved for use in precast prestressed hollow core slabs.
• Up to 3 anchoring depths provide maximum installation and design flexibility.
• Removable.
• Reduced edge and anchor spacing distances.
• Fire resistance class R30-R120 for design of anchorages under exposure to fire.
• The substrate type can be cracked concrete, non-cracked concrete, or precast pre-stressed hollow core slabs.

Technical data:

• Brand - Walraven
• Product Type - W-LX-N Concrete Screw
• Material - Carbon Steel
• Finish - Zinc Plated
• Thread Diameter - M8/M10
• Anchor Diameter - 6mm
• Grip Range - 25mm
• Nominal Anchor Depth - 35/39/55mm
• Length - 55mm
• Minimum Anchor Depth - 80/80/84mm
• Recommended Tightening Torque(SW1): SW13
• Recommended Tension Load on C20/25 Concrete - 1.42/2.85/4.28kN

Standards & Certifications: Complies with VdS CEA 4001:2014-04 (05) and VdS CEA 4001:2018-01 (06) for applications with sprinkler systems in concrete elements

Please Note:

• Performance and installation data are given for the specified European Technical Assessment. For full product data, please refer to product data sheets.
