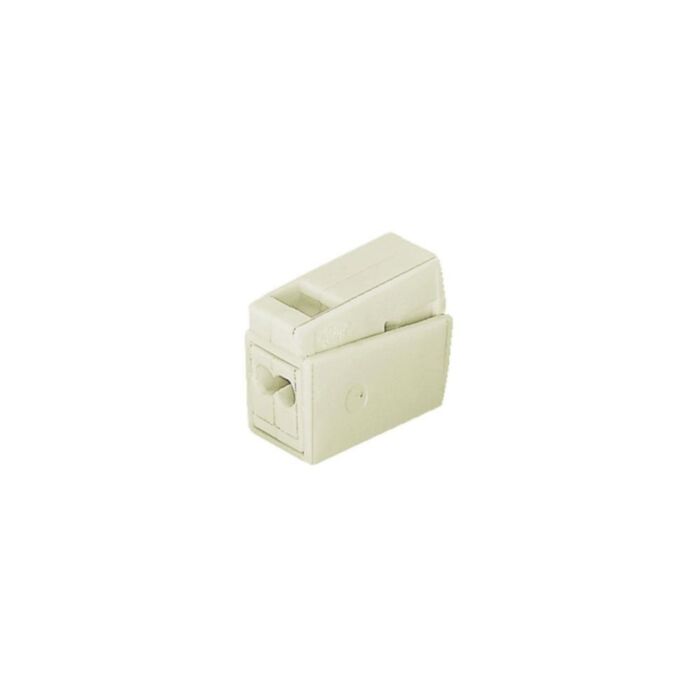

Wago 3 way white cable connectors meet BS7671 regulations (224 series)
Features:
The Wago 3 way lighting cable connector 224 series with pushfit port on one side and cage clamp on the other.
To use simply push the stripped solid conductor into the pushfit end to make the connection, on the clamp side squeeze the terminal to open the clamp mechanism and insert the stripped solid, stranded or flex conductor into the connector to make the connection.
These connectors combine pushwire and cage clamp technology, making them ideal for lighting applications.
Connector cross section is 1 x 1 - 2.5² ’’s’’ Installation side, 1 x 0.5 - 2.5² ’’s + f-st’’ lighting side.
Wago connectors meet the most stringent UK and international standards including the electrical requirements of BS7671 17th edition.
Installers can be totally confident that using Wago connectors enables them to follow ’best practice’ procedures and fully comply with the most up to date safety criteria.
There is a test point in the base of the housing.
The rating for this compact connector is 400V, 4KV, 24Amp.
This reduces wiring time and guarantees a gastight and maintenance free connection every time.
Quick and easy to use.
Reliable and secure connections.
Up to 50% reduced wiring time.
Touch-proof connection.
Vibration proof.
Reusable.
Integrated test points.
17th edition IEE wiring regulations (BS7671).
Wago connectors are IP20 (finger touch) with polyamide 6.6 housing for strength and durability.
Technical data:
Colour - White
Amperage - 24Amp
Max. service temp - 105°C
Rating - 400V, 4KV, 32Amp
Brand - Wago
Applications:
Designed for connecting lamps.
Ideal for extending and looping conductors.
Lighting.
Power.
Alarms and telecoms.
Heating and ventilation.
Control circuits.
Wire options are solid, stranded and flexible.
Standards & Certifications:
Meets BS7671 17th edition.
Approvals by IEC, UL, CSA.
Please note - In order to comply with the requirements BS7671 all connectors should be used in a suitable enclosure of material complying with the relevant glow-wire test requirements of BS 458-2.1. This will provide mechanical protection for the connectors as well as protection against dust, damp and accidental damage.
