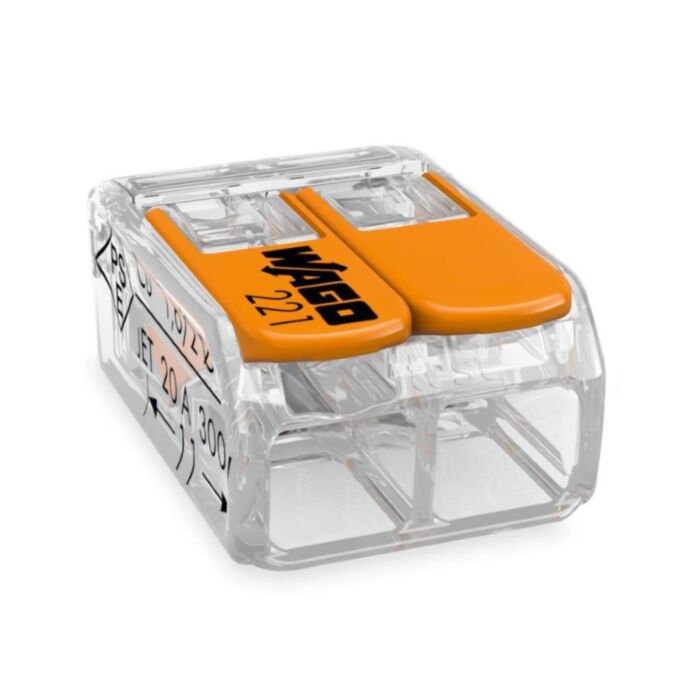

Proven and perfected. Wago’s 221 Series COMPACT Splicing Connectors for all wire types set new standards. Wago’s new “superstars” for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, in less space and more reliably. Now, you can clearly see if the wires are connected properly and stripped to the correct length.

Features:

• Ease of use - pull the lever up, insert a conductor and push the lever back down.
• Easily terminate conductors from 0.14 to 4 mm².
• Compact design, transparent housing, easier handling and two test ports.
• Connect solid, stranded and fine-stranded conductors.
• Time savings for installers and device manufacturers.
• Quickly install devices with higher levels of power consumption.
• Safely install long cable runs with larger conductor cross sections.
• Mounting carrier for installation conforms to standards.
• Custom carriers are possible.

Technical data:

• Brand - Wago
• Range - 221
• Product Type - 2 Way Lever Connector
• Connector Technology - CAGE CLAMP®
• Material - Plastic / Copper
• Colour - Transparent / Orange
• Depth - 18.8mm
• Height - 8.6mm
• Width - 13.2mm
• Weight - 1.7g
• Suitable Cable Size - 0.14-4mm²
• Voltage - 450V
• Amperage - 32Amp
• Fammability Class Per UL94 - V2
• Surrounding air temperature - Max. 85°C (T85)

Standards & Certifications:

• CCA DEKRA Certification B.V. EN 60998 NTR NL-7642
• CCA DEKRA Certification B.V. EN 60998 71-101730
