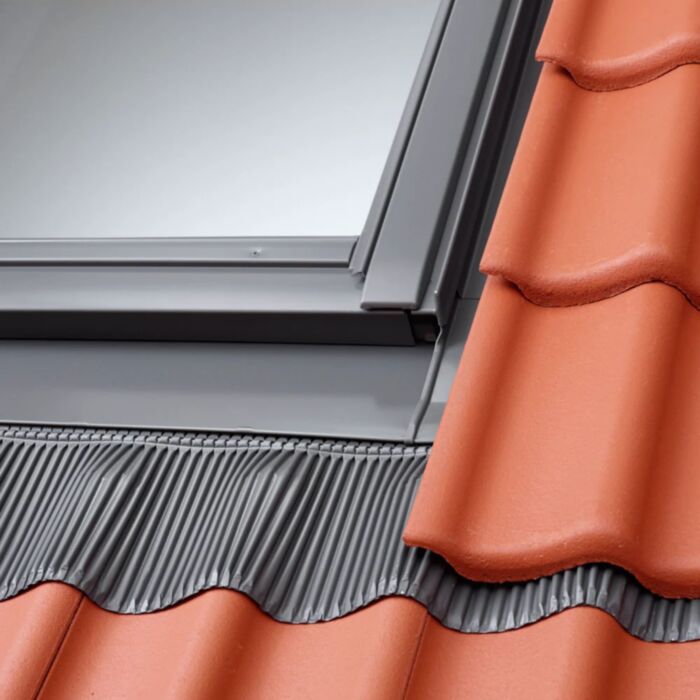

Velux Pro+ EDW CK04 2000 Single Tile Flashing With BDX & BFX Collars For Tile Up To 120mm Thick 550x980mm

VELUX flashing kit designed to integrate your VELUX roof window perfectly into the roofing material, ensuring that your window is completely weathertight, whatever the conditions. The Pro+ (2000) flashing set comes with underfelt collar (BFX) for a watertight seal between the roof window and the roof and insulation collar (BDX) for reduction of heat loss and eliminating cold bridges.

Features:

• The EDW window flashing kit is designed for standard installation of roof windows in flat or profiled roofing material up to 120mm in profile.
• Also for interlocking slate, thatch and profiled sheeting.
• Suitable for 15°- 90° roof pitches.
• Including underfelt collar (BFX) with drainage gutter for a watertight seal between the roof window and the roof.
• Including also insulation collar (BDX) for reduction of heat loss and eliminating cold bridges.
• Easy to install.
• Discreet installation is ensured in the roofing material.
• The roofing material conceals the top and side flashing components.
• The flashing components overlap each other to create weather tight joints.
• Foam gasket creates a seal between the flashing and profiled roofing materials
• The construction ensures safe drainage of water from the roof above the window.
• Corrosion proof materials.

Technical data:

• Brand - Velux
• Range - Pro+ 2000
• Product Type - Roof Window Flashing Kit
• Flashing Type - Standard EDW
• Size Type - CK04
• Colour - Grey
• For Tile Max Thickness - 14mm
• Width - 550mm
• Length - 980mm

Standards & Certifications:

• Quality systems implementation process and environmental management systems through appropriate accreditations ISO 9001 and ISO 14001
• In compliance with the EU Timber Regulation (EUTR), EU regulation 995/2010

Kit cosists of:

• EDW Flashing
• BDX Insulation Collar
• BFX Underfelt Collar

Please Note:

• Please note, the structural opening size required for your window will differ depending on which flashing kit is used, remember to consult the instruction manual supplied with your flashing prior to setting out the roof for installation.
