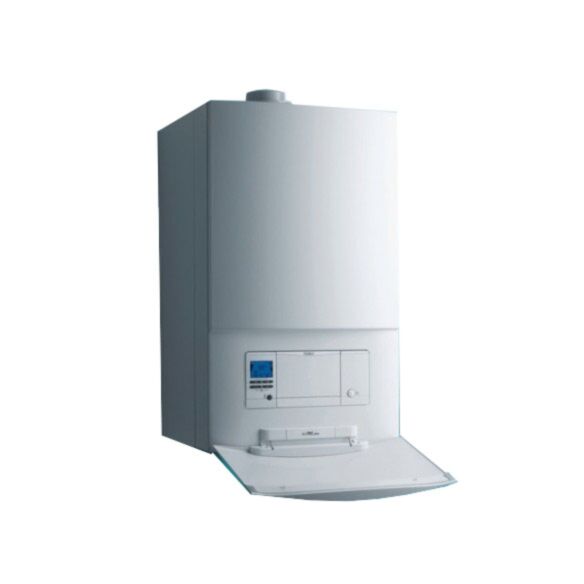

The ecoTEC plus 48kW light commercial wall-hung boiler range is a compact, high-efficiency solution designed for commercial applications where space is at a premium. Built in Vaillant's award-winning Derbyshire manufacturing plant, this boiler offer flexibility, ease of installation, and exceptional reliability for a range of projects.

Why Choose a Light Commercial Boiler?

Designed for larger residential properties and commercial premises, the ecoTEC plus 48kW provides high-output heating in a compact form. Ideal for businesses, schools, and apartment blocks, these boilers can be cascaded for higher outputs, making them a versatile alternative to bulky commercial boilers.

Features:

• Compact design – Smaller dimensions and lighter weight of only 38kg, make installation easier, even in restrictive spaces.
• High-efficiency stainless steel heat exchanger – Provides exceptional performance, lower running costs, and an ErP A+ efficiency rating.
• Compatible with cascade installations – Can be installed in multiples on a wall or rig system for larger premises with high heat demand.
• Natural gas and LPG compatibility – Can be converted to LPG for projects without a mains gas supply.
• Internal ducted rain collector – Prevents rain ingress from the flue system, protecting electrical components inside the boiler.
• Gunmetal air separator with system pressure gauge – Reduces unwanted vented emissions, with a removable front cover for easy maintenance.
• Hydrogen-ready – Successfully tested with up to 20% hydrogen blend as part of the HyDeploy project, ensuring future-proof low-carbon heating.
• Plate heat exchanger required for cascade installations where net output exceeds 70kW.

Technical data:

• Brand - Vaillant
• Range - ecoTEC Plus
• Product Type - 48 Light Commercial Boiler
• ErP Rating - A+
• Wattage - 48kW
• Depth - 405mm
• Width - 440mm
• Height - 720mm
• Weight - 38kg
• Heat Exchanger Material - Stainless Steel
• Mounting - Wall Mounted
• Heat Output Range Natural Gas G20 at 20mb At 50°C To 30°C - 8.7-48.0kW
• Heat Output Range Natural Gas G20 at 20mb At 80°C To 60°C - 7.8-44.1kW
• Conversion To LPG G31 At 37mb (conversion by installer on site) At 50°C To 30°C - 8.6-46.6kW
• Conversion To LPG G31 At 37mb (conversion by installer on site) At 80°C To 60°C - 8.6-46.6kW
• Maximum Heat Input (net) - 45.2kW
• Modulation ratio N:1 - 5.5:1 (18%)
• PCDB seasonal efficiency - 94%
• Part L2 seasonal efficiency NG - 95.9%
• Net efficiency 100% At 80°C To 60°C - 98.2%
• Net efficiency 30% At 50°C To 30°C - 109.2%
• Gas Working Pressure NG - 20mbar
• Gas Working Pressure LPG - 37mbar
• Nominal Gas Consumption At 15°C 1013mb NG - 4.8m³/h
• Nominal Gas Consumption At 15°C 1013mb LPG - 3.5kg/h
• NOx Class 6 0% Oxygen (Dry) - 30.8mg/kWh
• Minimum / Maximum Flow Temperature - 30°C / 80°C
• Nominal CH flow rate ∆ t = 20 K - 1900l/hr
• Pump Head In DHW Mode, Minimum / Maximum / Default - 100mbar / 400mbar / 200mbar
• Pump head in CH mode, Minimum / Maximum / Default - 100mbar / 400mbar / 200mbar
• Condensate (PH Range 3.5 - 4.0) - 5.0l/h
• Standby Loss ∆ t = 30 K - 25W
• Maximum Power Consumption - 162W
• Standby Power Consumption - < 2
• Supply Voltage / Frequency / Current
• 230V / 50Hz / 3Amp
• IP Rating - IPX4D
• Noise Level, Load EN 15036-1 re1pW - 56.5dB(A)
• Internal Water Capacity (PH Range 6.5 - 8.5) - 3.5l
• Concentric Air Flue duct - Ø 80mm / 125mm
• Connection Size (B23p) - Ø 80mm
• Maximum Horizontal Flue Length - 18mtr
• Maximum Vertical Flue Length - 21mtr
• Flue Mass Flow Qmax NG - 20.3g/s
• Minimum / Maximum Flue Gas Temperature - 40˚C / 78˚C
• Fan Pressure B23p In Single - 125Pa
• Maximum Flue Resistance In Cascade - 50Pa
• Flow And Return Connections - 1.¼"BSP
• Gas Connection - 1"BSP
• Condensate Connection Pipe - Ø 19mm ID
• Pressure Relief Valve Size - ¾"BSP
• Minimum / Maximum Operating Pressure - 0.8bar / 4.0bar
• High Efficiency Pump (built-in) - UPMM 25-85 EEI ≥ 0.23

Standards & Certifications:

• Certification For GB - C13, C33, C43, C53, C93, B23, B23p, B33, B53, B53p
