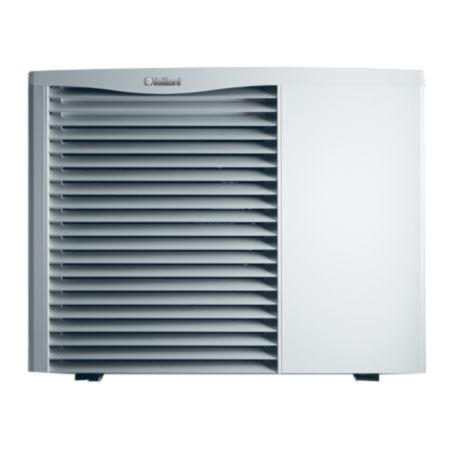

Vaillant Arotherm Air Source Heat Pump 11kW
Vaillant Arotherm Air Source Heat Pump 11kW

Vaillant Arotherm Air Source Heat Pump 11kW

Name: Vaillant Arotherm Air Source Heat Pump 11kW
Brand: Vaillant
SKU: 109138380
Price: 4492.8 GBP
Availability: InStock

In stock

Product Code

109138380

The Arotherm air-to-water heat pump provides a powerful yet efficient heating and hot water system, the range is suitable for use in a wide range of social housing or newly-built properties, and...Read more

DISCLAIMER

This is a non-stocked product and will be ordered directly from the supplier for you. Due to this there is an expected lead time for delivery of 3 working days. Please note that after 48hrs of your order being placed it cannot be amended or cancelled.

Your Price

£4,492.80 £3,744.00

Product Information

Features:

Arotherm heat pumps are easy to integrate into domestic heating systems, causing minimal disruption to homeowners.
As part of an all-electric heating solution, they also eliminate the need for on-site fuel storage.
Easily fits under a standard window due to its compact size.
With permitted planning available as low as three meters, sound power can be as low as 58dB(A) (5kW).
Blue fin coated evaporator with anti-hydro coating - Improves performance and provides corrosion protection.
Ability to cascade up to seven Arotherm heat pumps - Suitable for larger dwellings.
Solid case design with in-built anti-vandalism measure - No requirement for extra vandalism cages.

Technical data:

Brand - Vaillant
Range - Arotherm
Product Type - Air Source Heat Pump
Wattage - 11kW
Amperage - 20Amp
IP Rating - IP25
Depth - 463mm
Height - 975mm
Width - 1103mm
Voltage - 230V
Frequency - 50Hz
Heat Pump Type - Monoblock Air / Water Heat Pump
Flow / Return Heating Connections, Boiler Side - 1¼"
Weight - 126kg
Hydraulic Lines Material - Copper
Hydraulic Connections Material - Brass
Hydraulic Seals Material - EPDM
Plate Heat Exchanger Material - AISI 304 Stainless Steel
Plate Heat Exchanger
Material - AISI 304 stainless steel
Pump Casing Material - Painted Cast Iron
Fuse Type - T4A
Pump Power Consumption - 15-70W
Fan Power Consumption - 15-76W
Electrical Classification - I Class
Fan Rotational Speed - 700rpm
Maximum DHW Flow Temperature - 63°C
Maximum Air Flow - 3400m³/hr
ErP Rating - A+
Heating Circuit Minimum Operating Pressure - 0.1Bar
Heating Circuit Maximum Operating Pressure - 3.0Bar
Heating Circuit Water Contents in the Heat Pump - 2.1ltr
Heating Circuit Minimum Heating Circuit Water Contents - 35ltr
Heating Circuit Minimum Volume Flow Rate - 540ltr/hr
Heating Circuit Nominal Volume Flow Rate - 1900ltr/hr
Heating Circuit Hydraulic Pressure Difference - 300mbar

Standards & Certifications:

EN 12102.
EN ISO 9614-1.

Manufacturer Code
0020257348
Width
1103mm
Range
Arotherm
Material
Copper
Amperage
20Amp
Voltage
230V
Depth
463mm
Height
975mm
Wattage
11kW
ErP Rating
A+
Brand
Vaillant
Brand
Vaillant
