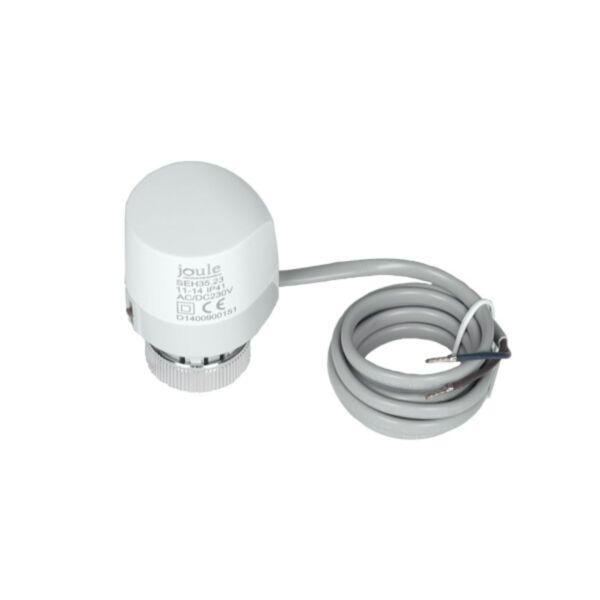

Control the flow of water around your Underfloor Heating (UFH) manifold circuits using an UFH thermoelectric actuator.

Features:

• Compatible with any of Joule’s thermostats, the actuators are the ideal solution when individual control of each zone/room is required.
• Manifold actuators, are installed onto the manifold and used to automatically open or close the water flow to a particular zone/room on your system.
• Will help save energy and maintain your optimal temperature.
• Can be applied to optimum control of valves on heating circuit distributors, small valves, dynamic balance valves and so on.
• Adjusts valve positions using very low power, meaning a constant room temperature can be achieved, reducing your fuel bills.
• Compatible with 16mm pipe, these Underfloor heating manifold actuators are quick to install and once fitted can be forgotten.
• Wax filled element from France, PTC heating to start.
• Spring re-set function, normally closed.
• Noiseless operation.
• Stroke position indicator.
• Nut connects make install and dismount easy.
• Position indicator on actuator.

Technical data:

• Housing material - PC+GF10
• Cable length - 900mm
• Voltage - AC/DC230V
• Power consumption - 3W
• Force - 110N
• Actuator travel - 3mm, 5mm
• Stroke - 11mm-14mm
• Closing and opening time - 180s~300s
• Valve interface - M30 x 1.5mm
• Ambient temperature - -5°C to 50°C
• Class of protection - IP41
