Underfloor heating manifold assemblies offer easy integration of heating flow and return to floor heating loops.

Features:

• Underfloor heating can be installed within a variety of different floor constructions - The different floor constructions comprise of solid screed floors, suspended floors and floating floors.
• This Underfloor heating manifold assembly offers easy integration of heating flow and return to floor heating loops.
• The manifold is completed with ball valves, flow gauges, end piece with fill valve and auto air vent and cone connectors.
• Manifold is supplied, boxed and ready assembled.
• Manifold has an outlet centre distance of 50mm.
• Manifold has threads with ISO 228.

Technical data:

• Material - Stainless Steel
• Colour - Stainless Steel
• No. of ports - 7
• Outlet connection sizes - ¾" Eurokonus
• Temperature range - 0°C to 70°C
• Max. operating pressure - 6Bar
• Control - Delta Pressure Constant & Delta Pressure Variable

Please note:

• 12mm and 16mm pipe adaptors sold separately. You will require 1 adaptor per connection (flow & return for the circuit). So for a 4 circuit manifold, they will need 8 adaptors, for a 5 circuit, 10 adaptors and so on.

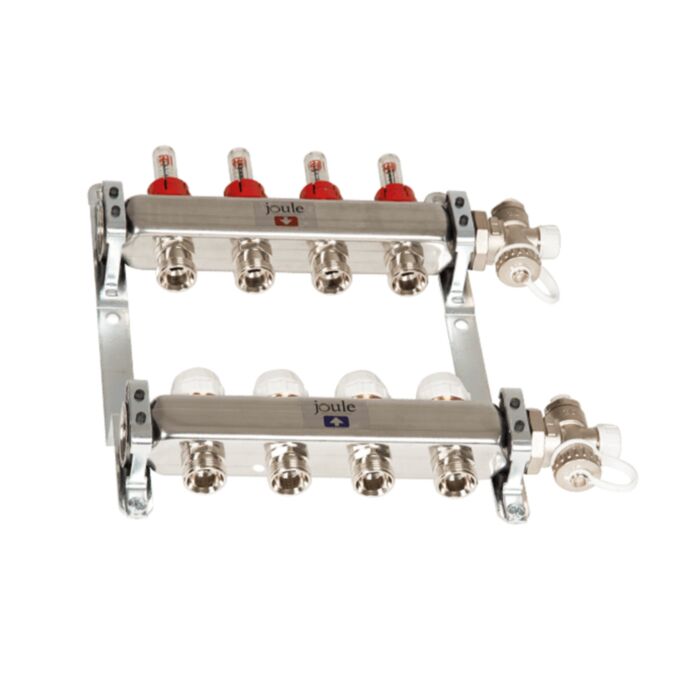

• Acuators are sold separately. Image is for illustration purposes only.
