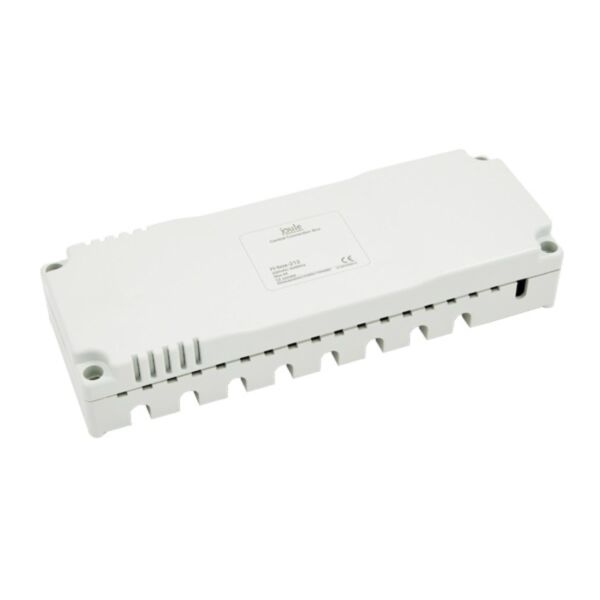

Underfloor Heating 12 Zone Wiring Centre 230V

In stock
Product Code
109116577
The wiring box is designed for connecting electro-thermal actuators to the room thermostats in hydraulic floor heating systems. Features: Connects the room thermostats with...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price
£73.98 £61.65

Click & Collect Delivery
Add to Project List

Select branch to check stock

Select postcode to see availability

The wiring box is designed for connecting electro-thermal actuators to the room thermostats in hydraulic floor heating systems.

Features:

  • Connects the room thermostats with the actuators on the stainless steel manifold.
  • Can connect up to ten room stats with twenty actuators.
  • Straight forward and fast to wire.
  • Can also be equipped with a programmable timer switch to optimize your control of floor heating systems.

Technical data:

  • Dimension (WxHxD) - 310x110x58mm
  • Supply voltage - 230VAC, 50/60Hz
  • Output voltage - 230VAC, 50/60Hz
  • Max load - 4Amp
  • Number of zone outputs - 12
  • Potential-free outputs - One relay for boiler, One relay for pump
  • Ambient temperature - 0°C to 50°C

  • Colour
    White
  • Voltage
    230V
