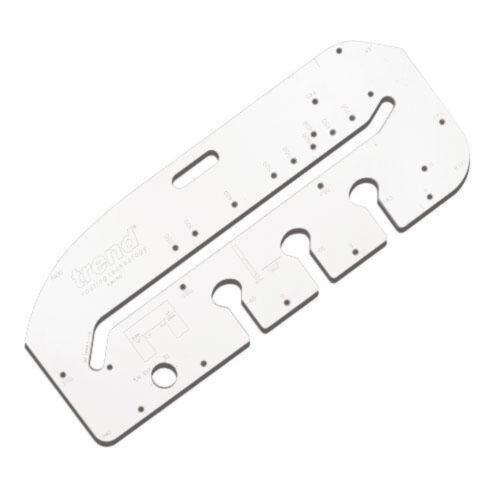

trend® Kitchen Worktop Jig 700mm

Features:

• Trade worktop jig for up to 700mm worktops.
• Hard wearing solid laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
• Left hand and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and ¾" BSP hole for mixer taps.
• Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops.
• Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
• Three open-ended bolt recesses (dog bone style) for 150mm bolts.
• Engraved lines for short 65mm bolts and worktop cross-cut.
• 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
• Engraved markings for identification of pin holes.
• Pins made from ABS plastic for strength.

Jig requires:

• A portable plunge router with 12.7mm (½") shank capacity and minimum 1300W
• A template guide bush with 30mm outside diameter ref GB30
• A TCT router cutter with 12.7mm (½") diameter and 50mm (2") cut length
• Two clamps

Technical data:

• Length - 985mm
• Width - 390mm
• Thickness - 12mm
• Weight - 5.4kg
• End Cut - 45°
• Corner Radius - 40mm
• Corner radius - 100mm
• Corner radius - 400mm
• Corner mitre joint - 45°
• Female cut material width loss - 35mm
• Brand - trend®

Supplied with:

• 6 x ABS plastic pins
