trend® Hinge Recessing Jig

Features:

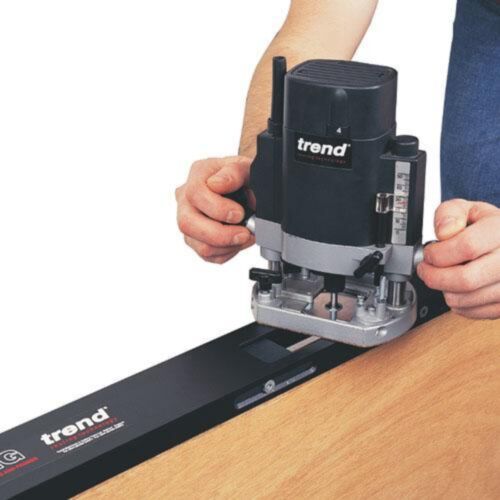

• Designed for recessing hinges in wooden doors & frames with a plunge router.
• Easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Four apertures for fire door requirements.
• No. need for marking out in the conventional way.
• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time.
• Suitable for timber based doors & square butt hinges.
• Can be used on both inside and outside doors.
• Use with a light duty plunge router with ¼" collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Angled position slots to prevent creep.
• Unibase may be needed.
• T4EK router requires a Unibase or special guide bush (GB/T4/160).

Technical data:

• Weight - 2.9kg
• Jig Overall length - 1957mm
• Overall Length - 1957mm
• Brand - trend®

Hinge sizes possible:

• Length min. - 2.5/8" (67mm)
• Length max. - 5" (127mm)
• Width min. - 3/8" (9.5mm)
• Width max. - 1.3/8" (35mm)

Door sizes possible:

• Height min. - 6’ 5" (1955mm)
• Height max. - 6’ 10" (2100mm)
• Thickness min. - 5/8" (16mm)

Supplied with:

• 4 x Apertures
• 2 x Bradawls with spacer
• 16mm Guide bush
• T-handle hex key
• 4mm Spacing gauge
• Plastic storage tube

Please note - For doors over 2040mm the bottom hinge will be higher than 9" up.
