trend® Hinge Jig Skeleton Two Part In Case

Features:

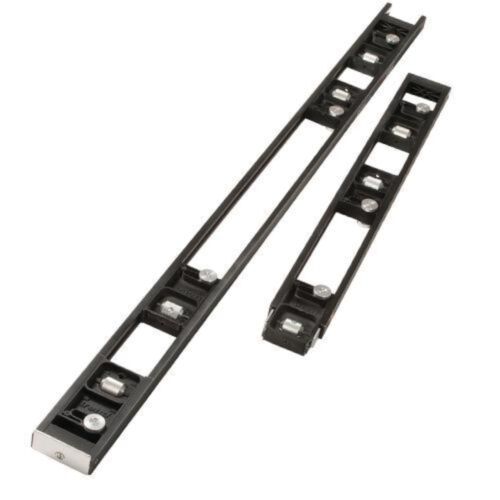

• Two part adjustable block portable template set designed for recessing hinges in wooden doors & frames with a router.
• Easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Fully adjustable apertures for fire door requirements and renovation work.
• Idea for fitting a new door in an old frame.
• No need for marking out in the conventional way.
• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time.
• Suitable for timber based doors & square butt hinges.
• Can be used on both inside and outside doors.
• Use with a light duty plunge router with ¼" collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Adjustable edge guides with pre-set for hinge of 20mm, 25mm and 30mm.
• Universal Sub Base may be needed.
• Patent No. - GB2490139.
• T4 router requires a Universal Sub Base or Special Guide Bush.

Technical data: Hinge sizes possible:

• Length min. - 2.5/8" (67mm)
• Length max. - 5" (127mm)
• Width min. - ½" (12.7mm)
• Width max. - 1.3/8" (35mm)
• Brand - trend®

Door sizes possible:

• Height min. - 6’ 5" (1956mm)
• Height max. - 6’ 10" (2100mm)
• Thickness min. - 5/8" (16mm)
• Thickness max. - 2" (51mm)

Supplied with:

• 3 x Hinge sliding aperture block assemblies
• 4 x Bradawls (short blade)
• 16mm guide bush
• Carry case

Please note - For doors over 2040mm the bottom hinge will be higher than 9" up.
