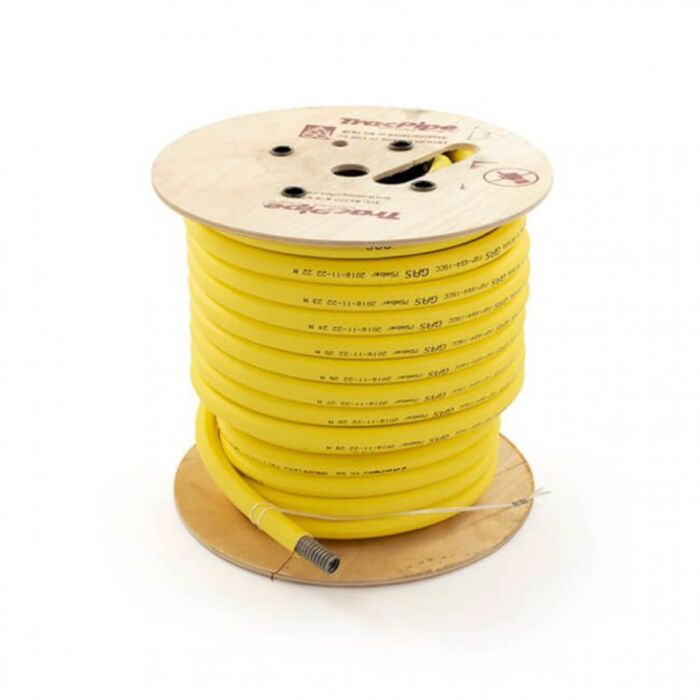

TracPipeCC® is the original TracPipe® but it has a second polyethylene outer cover over the length of the product.

Features:

• Designed for routing within unventilated voids as well as other specified hazardous areas.
• Can be run horizontally and vertically.
• Robust outer cover with internal ridges that allow any escaping gas to move freely to ventilated areas at the ends of the pipe.
• Stainless steel, semi-rigid (bendable) corrugated gas pipe with a yellow polyethylene cover that is fire and smoke retardant.
• An approved system for natural gas installations.
• AutoFlare® fittings are used to connect TracPipe® CC.
• No welding, soldering or threading is needed.
• TracPipe® can be buried underground or directly in screed without the need for additional corrosion protection.
• Pulling string installed between primary and secondary outer covers for quick and easy installation.

Technical data:

• Brand - TracPipe®
• Range - CC
• Product Type - Gas Flexible Coil
• Material - Stainless Steel / Polyethylene
• Colour - Yellow
• Diameter - 40mm
• Outer Diameter - 52mm
• Length - 30mtr
• Max. Operating Pressure - 75mBar
• Min. Bend Radius - 127mm
• Weight - 34.50kg

Standards & Certifications:

• BSI Flexible Stainless Steel and Fittings Kitemarked
• EUROCLASS Reaction to Fire rating of B-s1 d0
• BSI ISO 9001 Quality Management

Please Note:

• The pipe may be bent by hand, but must NOT be used where repeated bending occurs after installation.
