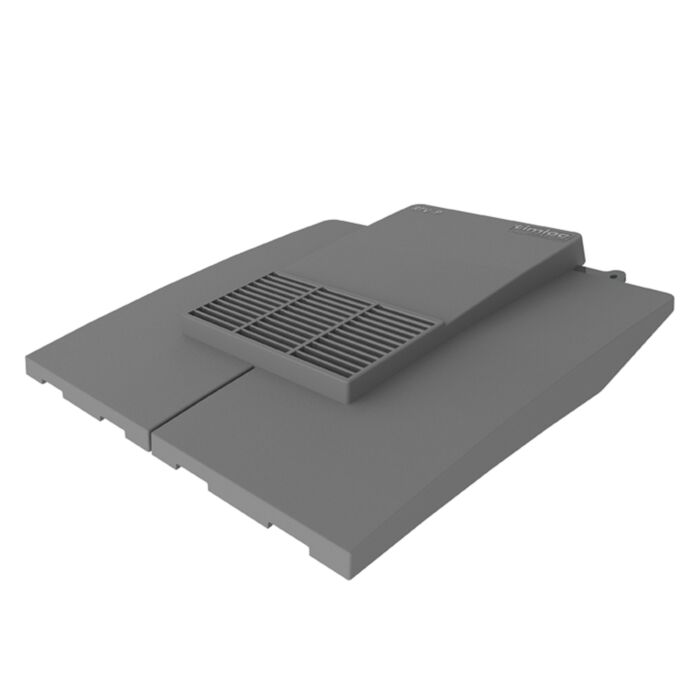

Plain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.

Features:

• Suitable for roofs with a minimum pitch of 35°.
• Free ventilation area of 7000mm².
• Sized to replace three plain tiles to provide a continuous visual appearance along the roof when viewed at all levels.
• Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening.
• 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris.
• UV stabilised top for continuous exposure to sunlight.
• Lightweight and easy to handle.

Technical data:

• Brand - Timloc
• Range - Roofline
• Product Type - Plain Roof Tile Vent
• Material - Polypropylene
• Finish - Textured
• Colour - Grey
• Width - 333mm
• Length - 334mm
• Weight - 0.7kg

Standards & Certifications:

• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding - product specifications (+A1:2017)
• BS 5250: 2021 Management of moisture in buildings - Code of practice
• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding - code of practice (+A2:2018)
• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
• Complies with all relevant sections of the Building Regulations 2010
• Satisfies all relevant NHBC requirements
