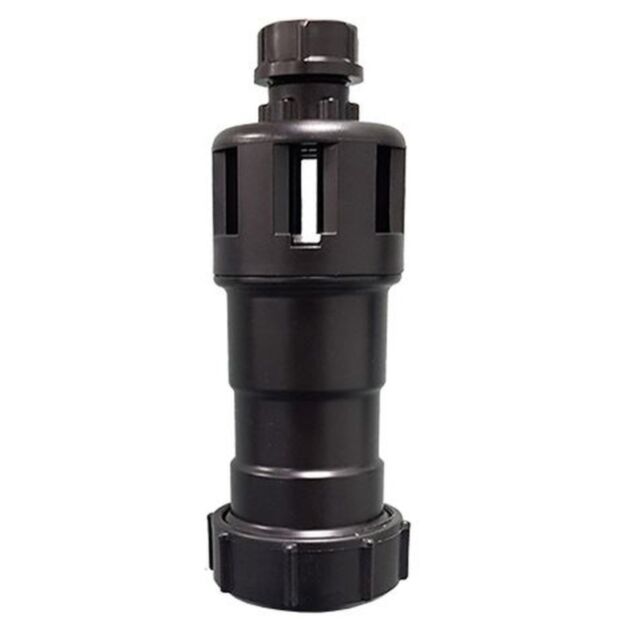

Type AA back-flow device which incorporates a waste trap, saving time and cost during installation.

Features:

• Type AA back-flow prevention.
• The specially designed seal prevents odours or gases from entering the building, whilst still allowing discharged water to be conveyed to waste safely.
• The Tundish operates under full bore discharge or with only a few drips due to its unique design and is ideal for use with an unvented water heater or boiler relief valve discharge.
• Visual means of discharge.
• The 15x32mm connects directly onto the waste pipe or 35mm copper without the need to adapt..
• Outlet connection can be connected to solvent weld, push fit and copper tube.
• Ideal for use with an unvented water heater or boiler relief valve discharge.
• Operates under full bore discharge or only a few drips.
• Faster, easier and cost effective installation.
• The all in one solution - no need for additional traps.

Applications:

• Boilers
• Cylinders
• Water heaters

Technical data:

• Brand - TESLA
• Range - Teslatun
• Product Type - Dry Trap Tundish
• Material - Plastic
• Inlet diameter - 15mm
• Outlet Diameter - 32mm
• Overall Diameter - 54mm
• Height - 146mm
• Max. Temperature - 100°C
• Max Flow Rate - 28ltr / min ( With No Restrictions )
• Normal G3 Installation Flow Rate - Up To 25ltr / min

Standards & Certifications:

• WRAS approved
