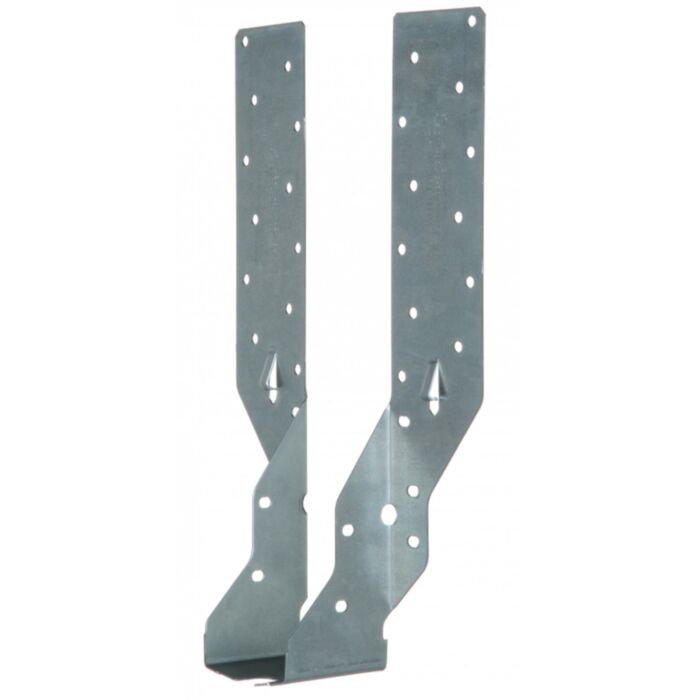

A galvanised joist hanger that provides great support with ease of installation.

Features:

• Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to support part of the connection.
• Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
• The installer no longer has to try to hold hanger, joist and nail with one hand and swing a hammer with the other!
• The model number and size is stamped into the seat of the hanger for easy identification, even after installation.
• JHA270 range features a location tab which allows easier alignment of the hanger.
• Speed-prong holds the hanger in position to allow easier attachment.
• Suitable on solid sawn timber joists.

Technical data:

• Range - Speedy
• Product Type - Joist Hanger Standard Leg
• Material - Mild Steel
• Finish - Pre-Galvanised
• Width - 47mm
• Dimension A - 47mm
• Dimension B - 236.5mm
• Dimension C - 50mm
• Dimension D - 48.8mm
• Dimension E - 101.5mm
• Dimension F - 52.1mm
• Dimension t - 0.9mm

Standards & Certifications:

• ETA-06/0270
• UK-DoP-e06/0270
