Features:

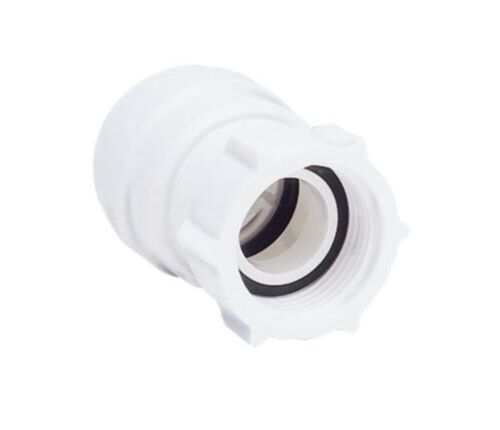

• Push-fit plastic fitting for the connection of plastic and copper pipe.
• Simply push the fitting fully onto the pipe and twist the plastic nut clockwise to lock in place.
• Should the need arise to demount the connection unlock the nut and push the collet towards the body of the fitting and pull the pipe to release.
• The fitting ensures an easier working environment in confined places and removes the need for hot works on site.
• Installation can be reduced by around 40% against traditional fixing methods.
• Suitable for hot and cold water and central heating systems.
• Grip and Seal connection.
• Lead free and non toxic.
• No scale build up and Corrosion Free.
• With all plastic pipes the relevant manufacturer’s pipe insert is required.
• Can be used with copper pipe to BS EN 1057 & Speedfit Barrier Pipe to BS7291.

Technical data:

• Accreditations - BSI to BS EN ISO9001, WRAS and BBA approved

Application in cold water (indirect and direct mains):

• Usual working temperatures - 20°C
• Max working temperature - 20°C
• Max working pressure - 12Bar

Application in central heating:

• Usual working temperatures - 82°C
• Max working temperature - 105°C, short term malfunction at 114°C
• Max working pressure - 3Bar

Application in hot water (including unvented cylinders):

• Usual working temperatures - 65°C
• Max working temperature - 95°C
• Max working pressure - 6Bar

Please note - Not for use in gas, fuel oil or compressed air applications.
