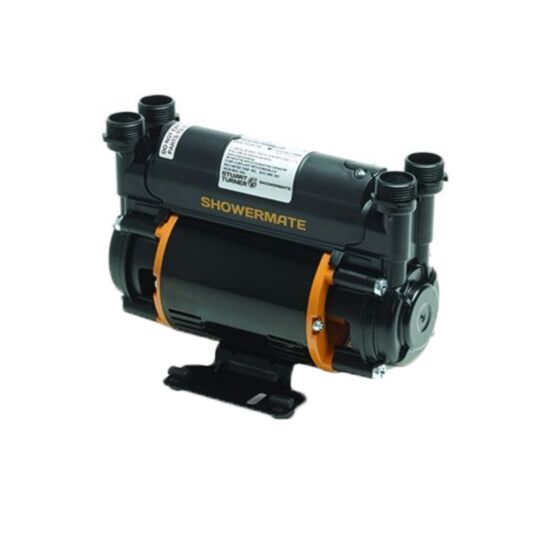

Showermate Standard Twin shower pumps can be used to pump the hot and cold water supplies to a shower or bathroom as required.

Features:

• High quality, high performance compact pump supplied with four 15 mm anti-vibration flexible hoses with integral isolation valves on the inlet hoses.
• Showermate Standard pumps are suitable for use where there is already more than 1 litre/min flow from the outlet(s) to be boosted.
• High quality, high performing plastic pump supplied with 15 mm flexible hoses with integral ISO valves on inlet hoses.
• Low pressure gravity systems - boosting hot or cold water supplies to a single shower or to up to four outlets within a bathroom.
• All Showermate Standard pumps are suitable for use in open vented (gravity fed) systems for positive head applications
• Pre-wired with 1.5mtr power cable.
• EPDM/PTFE/Al. Oxide pump seal.
• Anti-vibration mounting feet.
• High reliability motor.
• Continuously rated performance.

Technical data:

• Brand - Stuart Turner
• Range - Showermate
• Product Type - Standard Twin Shower Pump
• Material - Plastic
• Height - 171mm
• Width - 132mm
• Length - 231mm
• Weight - 4.7kg (Including Fittings)
• IP Rating - IP22
• Pump Type - Peripheral
• Acoustic Performance - 57dBA
• Power Supply (Vac/Ph/Hz) - 230V a.c. / 1 / 50Hz
• Current- Full Load - 1.7Amps
• Power Consumption P1 - 385W
• Fuse Rating - 5Amps
• Flexible Hoses - 4
• Dry Run Protection - Yes
• Max. Head-Closed Valve - 1.5Bar
• Performance At 9ltr/min - 1.1Bar
• Performance At 18ltr/min - 0.6Bar
• Max. Flow - 32ltr/min
• Max. Static Inlet Pressure - 10mtr
• Max. Working Pressure - 380kPa (3.8Bar)
• Max. Ambient Air Temperature - 40°C
• Min. / Max. Water Temperature - Min. 4°C / Max. 65°C
• Flow Switch Sensitivity - Approx. 0.8ltr/min
• Pump Connections - G¾ Male
• Guarantee - 3 year

Standards & Certifications:

• WRAS
• CE
• UKCA
