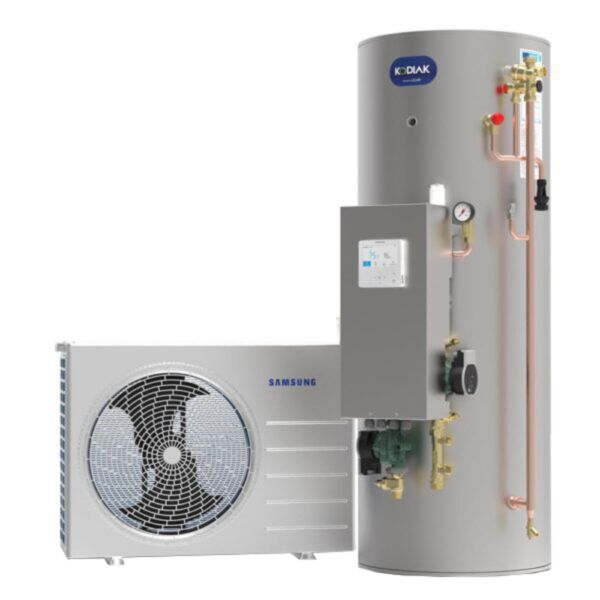

Samsung Monobloc Air Source Heat Pump 5kW With Joule Kodiak 170ltr Slimline Cylinder Pre Plumbed

Heat pumps extract heat from one place and transfer it to another. The heat pump is not a new technology, it has been used around the world for decades. Both refrigerators and air conditioners use this technology. By circulating refrigerant through a cycle of evaporation and condensation, heat pumps transfer heat. The refrigerant is pumped between two heat exchanger coils by a compressor. In one coil, the refrigerant is evaporated at low pressure and absorbs heat from its surroundings. The refrigerant is then compressed route to the other coil, where it condenses at high pressure. At this point, it releases the heat it absorbed earlier in the cycle.

Features:

• The 170ltr cylinder provides hot water for your home, and the 5kW heat output is suitable for most homes in the UK.
• The slimline models have been designed for the use in tight areas where there is more height than width available.
• The heat pump has been rated as an A++ energy-efficient.
• R32 refrigerant has a lower global warming potential than other refrigerants.
• This machine operates quietly.
• This heat pump can be controlled wirelessly from your smartphone or tablet, so you can control it from wherever you are.
• The cylinder is pre-plumbed for an easy installation process.
• The system is compatible with all systems that operate at low temperatures.
• Suitable for water supply up to 60°C.
• Easy to install - Easy to control.
• There is a temperature range of operation down to -20°C.
• When the ambient temperature is low, the capacity of the system increases.
• It has a compact design, making it an ideal choice for homes with limited space.

Technical data for Samsung Monobloc HHSM-G600005-1:

• Brand - Samsung
• Product Type - Air Source Heat Pumps
• Depth - 310mm
• Width - 798mm
• Height - 880mm
• System Operation Nominal Capacity Heating (A7/W35¹ /A7/W55²) - 5kW / 4.3kW
• Cooling (A35/W18¹) - 5000W
• Power Input (Nominal) Heating (A7/W35¹/A7/W55²) - 1030W / 1520W
• Cooling A35/W18¹ - 1140W
• COP (Nominal Heating) A7/W35¹/A7/W55² - 4.85W / 2.83W
• EER (Nominal Cooling) A35/W18¹ - 4.39W
• SCOP LWT 350c/550c - 4.46W / 3.2W
• Wattage - 5kW
• Amperage - 16Amp
• Max. Amperage - 20Amp
• ErP Rating - A+++
• Min. Water Flow Rate - 7ltr/min
• Max. Water Flow Rate - 48ltr/min
• Leaving Water Temperature for Heating - 15°C To 65°C
• Leaving Water Temperature for Cooling - 5°C To 25°C
• Gas Type - R32

Technical Data for Joule Kodiak 170ltr Cylinder:

• Brand - Joule Kodiak
• Product Type - Slimline Pre Plumb Cylinder
• Wattage - 4.35kW
• Capacity - 170ltr
• Water Connection Size - 22mm
• ErP Rating - C
• Width - 475mm
• Height - 1732mm
• Material - Stainless Steel Duplex LDX 2101
• Insulation Type - Polyurethane foam CFC-Free and HCFC Free
• Insulation Thickness - 50mm
• Voltage - 220-240V
• Frequency - 50Hz
• Amperage - 16Amp
• Weight - 64kg

Supplied with:

• 1” Y Pattern Strainer with Isolation.
• 28mm Iso Valve Red.
• 28mm diameter and 750mm Length Braided Hose Ins Elbow x 2

Cylinder Kit consists of:

• 2 x port valve and motors.
• By-pass valve.
• Filling point connection.
• Pre-plumb hot water pipework.
• 7mtr circulating pump.
