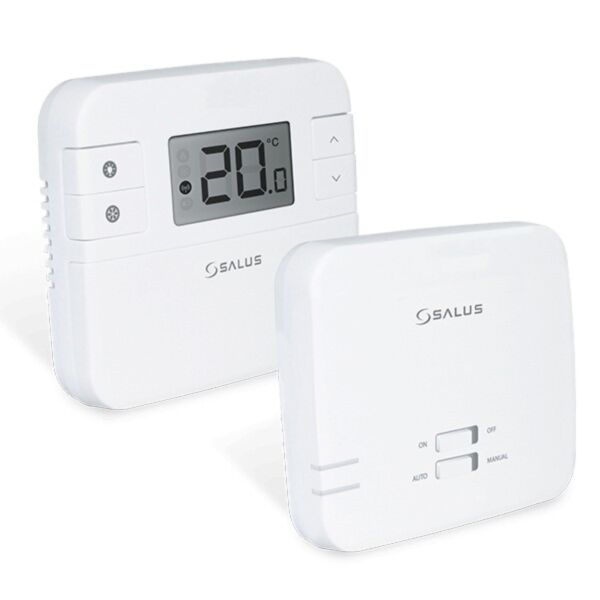

SALUS RT310RF Digital Thermostat & RF Boiler Receiver

The RT310RF is a stylish, simple to install and use wireless RF room thermostat.

Features:

• Easy to install and simple operation with a contemporary design.
• Switching volt free and 230V.
• Sleep mode.
• Frost protection.
• Desk stand.
• Frequency 868MHz with 30 metre range.
• 16Amp relay switching.
• Pre-paired wireless communication, so no more dip switches!.
• RF test function.
• Receiver manual override switch.

Technical data:

• Thermostat dimensions (HxWxD) - 96x96x27mm
• Receiver dimensions (HxWxD) - 96x96x27mm
• Colour - White
• Thermostat power supply - 2 x AA Batteries
• Receiver (RX) supply - 230V AC 50Hz
• RX rating max. - 16(5)Amp SPST
• RX Input/Output - 0-230V
• Temperature setting range - 5°C to 35°C
• Warranty - 5 Years

Please follow the new procedure below:

• The RT310RF is factory pre-paired as standard. When you power up the receiver, the RED LED will flash.
• To test that the receiver and thermostat are paired, navigate to the Pairing Menu by choosing Menu > Pairing > TEST. This will display ‘TESTING 10’ on the thermostat. If the receiver and thermostat are paired correctly, the RED and GREEN LED’s on the receiver will flash. To exit test mode, press and hold the Menu button for 3 seconds.
• If the RED and GREEN LED’s on the receiver are NOT flashing, you will need to Re-Pair the Thermostat and Receiver. To do this, slide the ON/OFF switch on the receiver to OFF and then slide it back to ON. The RED LED will now flash. Now, enter the pairing process by choosing Menu > Pairing > PAIR. You will now see ‘PAIRING 10’ on the screen. When the RED LED’s stops flashing, the Thermostat and Receiver are paired.
• You can test this again by following the above process.
