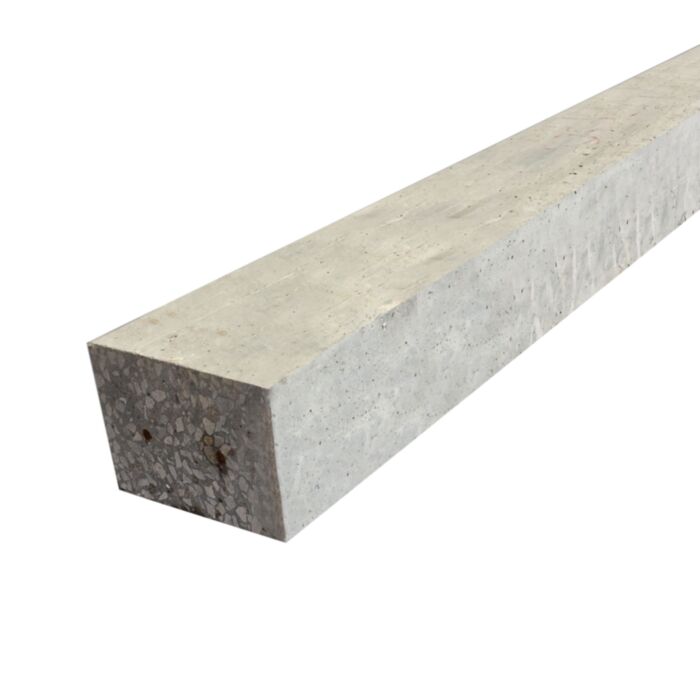

RW22 Universal Prestressed Concrete Lintel 215x140x3000mm
In stock
Features: Cost effective lintel, which is reversible. Easy to install and suitable for a variety of applications - Internal partitions, external cavity walls, garages, ov...
Read more
Your Price
Select branch to check stock
Select postcode to see availability
Features:
Cost effective lintel, which is reversible. Easy to install and suitable for a variety of applications - Internal partitions, external cavity walls, garages, over services. Designed to support:
Masonry loads. Uniformly distributed timber floor loads. Uniformly distributed roof loads. Concrete floor loads. Attic truss loads. Point loads - compound trusses, steel beams, etc. Technical data:
Uniform distributed serviceable load - 8.1kN/m for 140mm wide, 4.7kN/m for 215mm wide Resistance moment serviceable - 9.2kNm for 140mm wide, 5.2kNm for 215mm wide Clear span - 2700mm Basic fire resistance - 0.5hrs Brand - Stressline
Manufacturer Code
PRE LINTEL 215X140X3000
Brand
Stressline
Brand
Stressline
Returns
This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.
Click here for the MP Moran return policy
