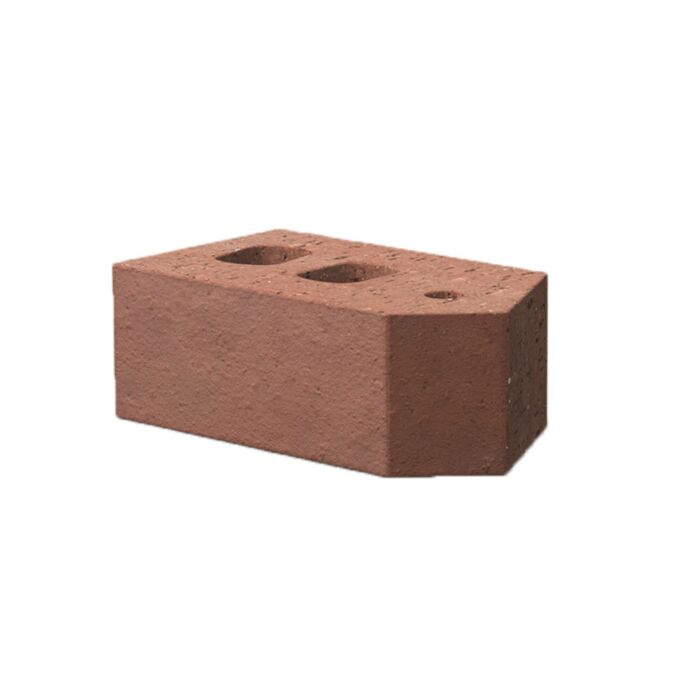

External Squint 45° Bricks allow chamfer detailing to be achieved within brickwork to doors, windows & corner details. These can also be used as chamfered cappings used on walls.

Features:

• Allows brickwork to turn though 45 degree angle on plan, with variations in leg dimensions to achieve different bond pattern requirements.
• Designers enjoy unparalleled flexibility, unlocking creative possibilities that go beyond the limitations of standard bricks. The intricate detailing achieved is simply unmatched, adding a touch of elegance to architectural designs.
• These specialized bricks not only elevate aesthetics but also offer additional durability and protection to the brickwork.
• By reducing wastage on-site and eliminating the need for hand cutting, they streamline the construction process, making projects more efficient and cost-effective.
• Commonly used with: AN.3.2

Technical data:

• Brand - Wienerberger
• Product Type - External Squint Perforated Brick
• Material - Clay
• Colour - Red
• Finish - Smooth
• Angle - 45°
• Thickness - 102mm
• Length - 164mm
• Height - 65mm

Please Note:

• Special shaped bricks may be solid, perforated or frogged unless specified otherwise. Manufactured special shapes may vary in colour and texture to the equivalent facing brick product.
