Features:

• Low profile ducting enables it to be concealed when installed along the top of wall units.
• It can also be fitted in ceiling voids and cavity walls, providing versatility whilst remaining unobtrusive.
• Suitable for applications requiring low extraction rates, such as low powered cooker hoods, tumble dryers and extractor fans/ventilation of domestic bathrooms and toilet.

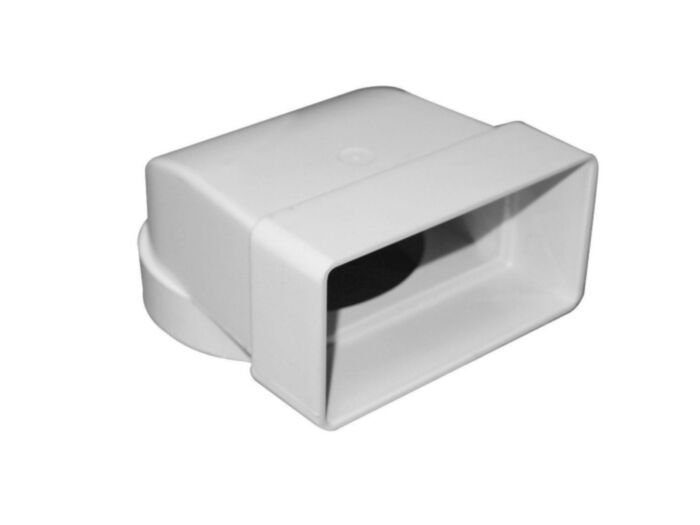

• Connects low profile flat channel to 100mm round pipe/flexi hose at a 90° angle.
• 110x54mm rectangular end - Female (internal dimensions 110x54mm) - Fits over 110x54mm low profile flat channel ducting.
• 100mm (4’’) round end - Male (100mm outer diameter) fits into a 100mm (4’’) round pipe ducting/flexi-hose.
• For use with the low profile/round pipe ducting systems.
• Quick and easy fit.
• Lightweight.
• Flame retardant.

Technical data:

• Connector type - Rectangular/Round female fittings - 110x54mm inner dimensions
• Maximum working temperature - 60°C
• Material - uPVC
• Colour - White
• Brand - Domus
