RapidRail WM15 Cantilever Arm 20x30x250mm

Name: RapidRail WM15 Cantilever Arm 20x30x250mm
Brand: RapidRail
SKU: 109132978
Price: 12.83 GBP
Availability: InStock

In stock

Product Code

109132978

RapidRail WM15 Cantilever Arm is a structural framework to fix at one end only to wall or ceiling. It supports a larger construction. It projects outwards beyond its support. Features: ...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£12.83 £10.69

Select branch to check stock

Select postcode to see availability

Product Information

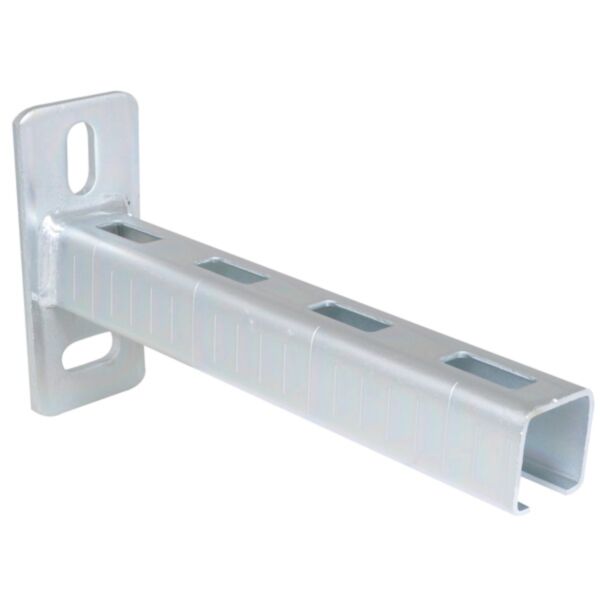

RapidRail WM15 Cantilever Arm is a structural framework to fix at one end only to wall or ceiling. It supports a larger construction. It projects outwards beyond its support.

Features:

Wall plate with welded C-profile.
Perfectly suitable for hanging to the ceiling.
Slots at 90Degree to each other to simplify fixing.
CO2 welded.
A continuous graduated centimetre scale on one side.
Unique perforation on rail WM15, WM30 and WM35 allows for hanging on both sides.
Product is part of the BIS UltraProtect® 1000 system.
Suitable for in and outdoor applications.
Stands min. 1000 hours salt spray test (max. 5% red rust) according to ISO 9227.
Surface treatment zinc plated, hot dip galvanised.

Technical data:

Brand - RapidRail
Product Type - Cantilever
Product Code - 6603725
Material - Metal
From Rail - WM15-30x20mm
Projection - 250mm

Diagram measurements:

L - 250mm
B - 38mm
H - 110mm
s - 4.0mm
d1 - 25x11mm
S - 15mm
k -70mm

Manufacturer Code

6603725
Product Type

Cantilever
Material

Metal
Projection

250mm
Brand

RapidRail
Brand

RapidRail

Shipping and Returns

Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.

Click here for the MP Moran return policy

Data and Safety Sheets

If no Data and Safety sheets are visible here please send an email request to [email protected]
