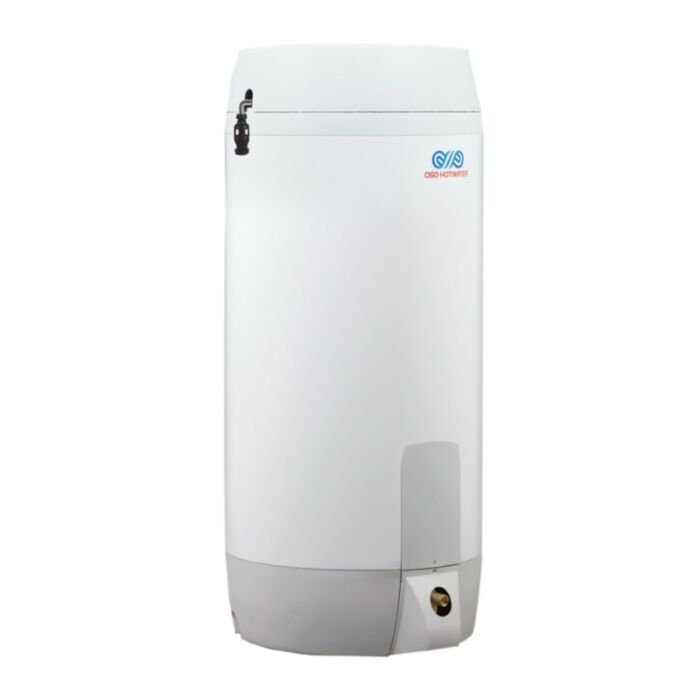

In conjunction with a System boiler the Super Coil becomes a part pre-plumbed cylinder. It incorporates concealed wiring, and a unique design with the blending valve, temperature and pressure relief valve, as well as an expansion vessels all hidden under a lid - where there is also space to fit the motorised valve and all the pipework.

Features:

• Labour saving up to 70%.
• With an ultra grade INCOTEC immersion heater as backup for high durability in hard water.
• Part pre-plumbed unit for system boiler.
• Integral expansion vessels.
• Shortest cylinder system in the market.
• Unique space efficiency.
• Unique patented design with a 25 year warranty.
• Pipes and cables hidden.
• Smooth coil that doesn’t encourage limescale build-up.
• Ultrawelt exothermic welding for superior corrosion resistance.
• Fitting template provided.
• Maintenance friendly.

Technical data:

• Brand - OSO HOTWATER
• Range - Super Coil
• Product Type - Indirect Cylinder
• Material - Vacuum Insulated Panel
• Element Material - Incoloy 825
• Diameter - 580mm
• Height - 1470mm
• Weight - 64kg
• ErP Rating - C
• IP Rating - IP24
• Capacity - 242ltr
• Immersion Capacity - 3kW
• Maximum Rated Cylinder Pressure - 1/10Bar
• Voltage - 240V
• Heat loss - 80W

Standards & Certifications:

• CE mark Product compliance (performed by the manufacturer) to European standards
• RoHS Restriction of Hazardous Substances
• NEMKO mark. Product compliance to European safety and EMC standards
• WRAS mark. Product compliance to United Kingdom water regulations & safety standards

Components:

• Mixing Valve - Preset 60°C
• Thermostat - Adjustable 20°C To 70°C - Preset 60°C
• Immersion 3Kw
• P&T safety valve 10Bar - 90°C To 95°C
• Integrated G3 kit including: 2 port zone valve (Honeywell), strainer, PRV, expansion relief, drain cock, tundish, and expansion vessel 2 x 6ltr factory fitted
