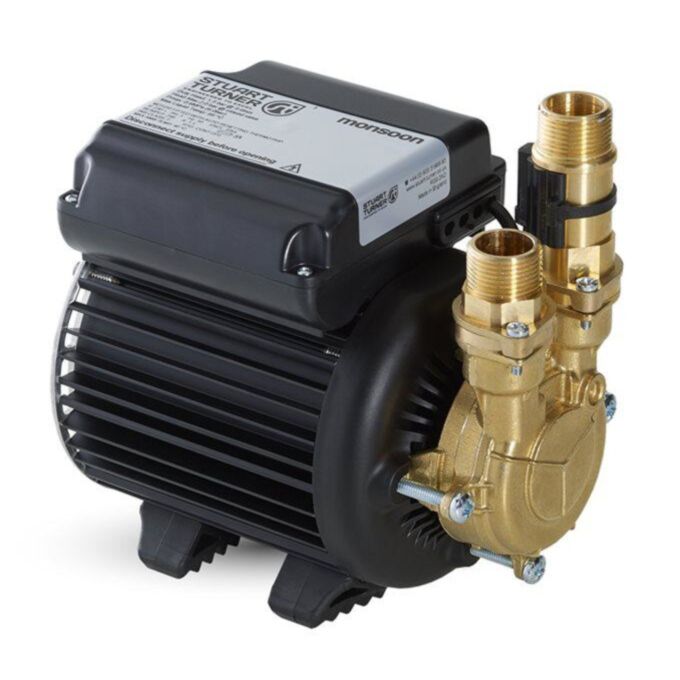

Monsoon Standard Single pumps are ideal for boosting hot and cold water supplies to taps, showers, a complete bathroom or the whole house in low pressure gravity systems.

Features:

• Suitable for use where there is already more than 1 litre/min flow from the outlet(s) to be boosted.
• Premium quality brass pump supplied with flexible hoses with integral ISO valves.
• Suitable for positive or head applications.
• Pre-wired with 1.5 metre power cable.
• EPDM/PTFE/Al. Oxide seal.
• Very quiet operation.
• Anti-vibration feet.
• Continuously rated.

Technical data:

• Material - Brass
• Length - 200mm
• Width - 126mm
• Weight(including fittings) - 6.0kg
• Enclosure protection - IPX4
• Pump Type - Peripheral
• Typical Value - 55dBA
• Power Supply (Vac/Ph/Hz) - 230 V a.c. / 1 / 50Hz
• Current- full load - 2.4Amps
• Power consumption P1 - 555W
• Fuse rating - 5Amps
• Anti-vibration Feet - Yes
• Inlet strainer(s) - Yes
• Flexible Hoses - 2
• Dry Run Protection - Yes
• Max. Head-closed valve - 4.5Bar
• Performance at 9ltr/min - 3.5Bar
• Performance at 18ltr/min - 2.4Bar
• Max. Flow - 40ltr/min
• Max. Static Inlet Pressure - 14mtr
• Max. Working Pressure - 600kPa (6.0Bar)
• Max. Ambient Air Temperature - 40°C
• Min. / Max. Water Temperature - Min. 4°C / Max. 65°C
• Flow Switch Sensitivity - approx. 0.6ltr/min
• Pump Connections - G¾ male
• Guarantee - 5 year
• Brand - Stuart Turner

Standards & Certifications:

• WRAS
• CE
