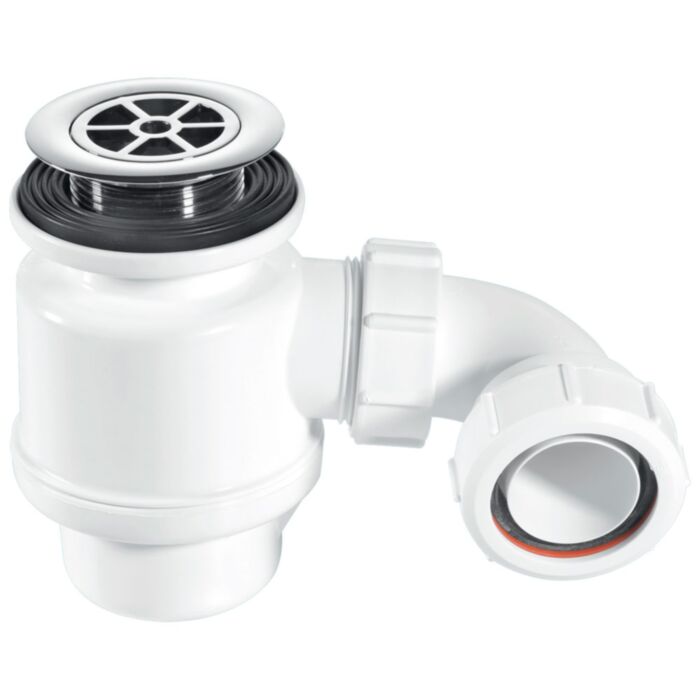

McAlpine Resealing Shower Trap With 70mm Chrome Plated Flange & Multifit Outlet 1½"

Features:

• Prevents odorous gas in plumbing drains and sewers from rising up through a shower into a home or business.
• Suitable for shower trays with a 52mm waste hole.
• 50mm Water seal.
• 1½" BSP thread.
• Supplied with 95Degree Bend - BSP coupling nut x 1½" Multifit.
• Waste grid and dip tube removable to facilitate easy cleaning.
• 1½" Multifit connection suits all plastic waste pipes to BS EN 1451-1-2000 and BS EN 1329-1:2000, copper pipe (metric or imperial) and lead pipe.
• The moulded internal sleeve of the connection, centres and supports the pipe.
• The Multifit and friction washers ensure a secure seal is made between the pipe and the wall of the fitting.
• When the compression nut is turned hand tight the best possible mechanical joint is complete.
• If a plastic pipe is undersize, or out of shape, the end may require to be warmed to enable it to be pushed over the internal sleeve.

Technical data:

• Material - Polypropylene
• Colour - Chrome
• Overall height - 118mm
• Flow rate - 54 ltr/min when tested under a constant 120mm head of water in accordance with clause 5 of BS EN 272-2:2002
• Conforms to - BS EN 274-1:2002, BS EN 1451-1:2000 & BS EN 1329-1:2000
• Finish - Polished
• Diameter - 1½"
• Type Of Fitting - Trap
• Brand - McAlpine
