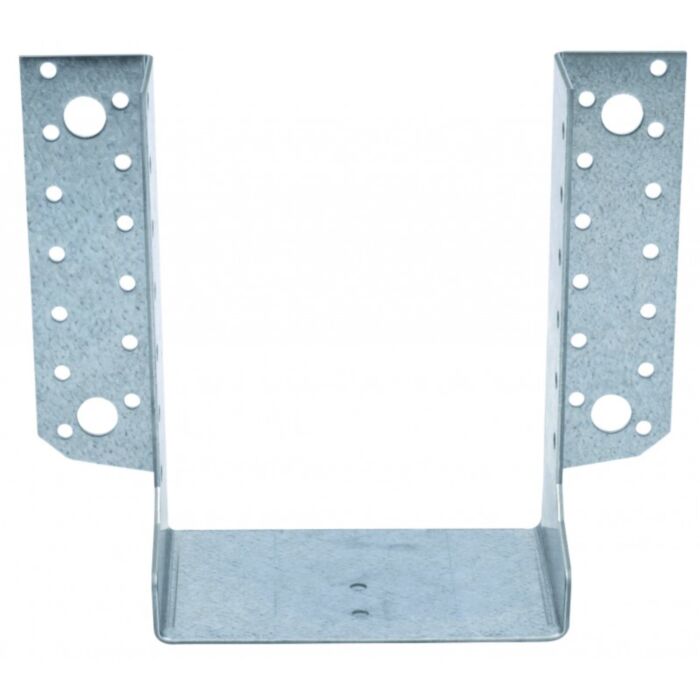

Maxi Face Fix Joist Hanger Pre Galvanised Mild Steel 47x84x226.5mm
Maxi Face Fix Joist Hanger Pre Galvanised Mild Steel 47x84x226.5mm

Maxi Face Fix Joist Hanger Pre Galvanised Mild Steel 47x84x226.5mm

Name: Maxi Face Fix Joist Hanger Pre Galvanised Mild Steel 47x84x226.5mm
SKU: 109130800
Price: 5.68 GBP
Availability: InStock

Maxi Face Fix Joist Hanger Pre Galvanised Mild Steel 47x84x226.5mm

In stock

Product Code

109130800

SAE range contains heavy-duty hangers designed for applications requiring additional strength. Features: The hanger depth is to be at least 60% of the carried member depth ...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£5.68 £4.73

Select branch to check stock

Select postcode to see availability

Product Information

SAE range contains heavy-duty hangers designed for applications requiring additional strength.

Features:

The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member.
SAE hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face.
SAE Timber Bolted capacity to be determined according to the relevant standards.
For use with solid sawn timber joists and purlins.
Quick and simple installation.

Technical data:

Material - Mild steel
Finish - Pre-galvanised
Dimension A - 47mm
Dimension B - 226.5mm
Dimension C - 84mm
Dimension D - 41.5mm
Dimension F - 86mm
Dimension t - 2mm
Joist Min. Width - 44mm
Joist Max. Width - 47mm
Joist Min. Height - 242mm
Joist Max. Height - 378mm

Standards & Certifications:

UK-DoP-e06/0270
ETA-06/0270

Delivery Only
No
Brand
Unspecified
Product Type
Maxi Face Fix Joist Hanger
Material
Mild Steel
Colour
Steel
Finish
Pre-Galvanised
Thickness
Unspecified
Width
47mm
Height
84mm
Length
226.5mm
Quantity in Pack
1pk
