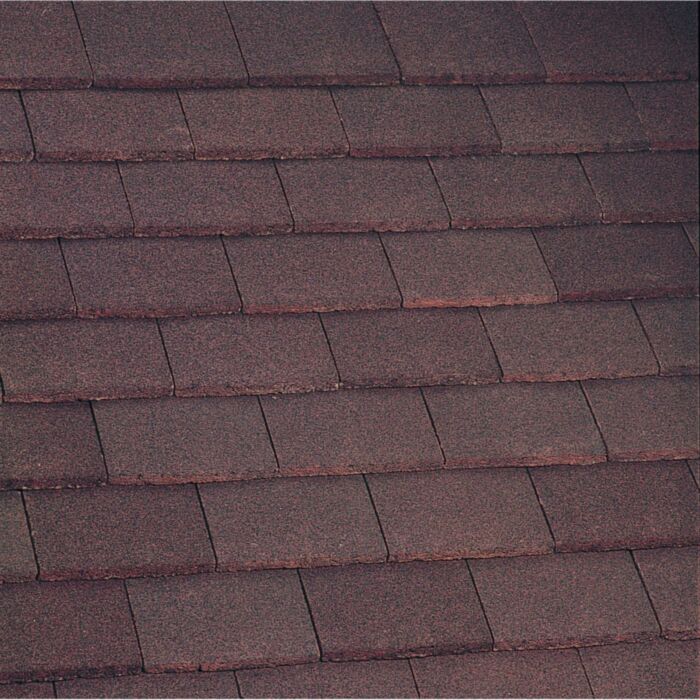

A versatile and traditional tile suitable for dormers, eyebrows, conical roofs, and vertical cladding.

Features:

• The Marley concrete plain tile is highly versatile and ideal for detailing on classic roof designs, such as dormer and eyebrow windows as well as vertical hanging.
• Made from high-quality concrete, designed to withstand the elements and provide long-lasting durability.
• Authentic and traditional design
• Low maintenance and fire resistant
• Cost-effective
• Suitable for extreme climates.

Technical data:

• Brand - Marley
• Product Type - Plain Roof Tile
• Material - Concrete
• Colour - Dark Red
• Finish - Granular
• Width - 168mm
• Length - 267mm
• Thickness - 12mm (Nominal)
• Min. Pitch - 35°
• Max. Pitch - 90°
• Covering Capacity (Net, Roof) - 60 Tiles/m² At 100mm Gauge
• Covering Capacity (Net, Vertical) - 53 Tiles/m² At 115mm Gauge
• Weight Of Tiling Per m² (Approx. Roof) - 73.8kg/m²(0.72 kN/m²) At 100mm Gauge
• Weight Of Tiling Per m² (Approx. Vertical) - 58kg/m²(0.57kN/m²) At 115mm Gauge
• Tiles Nails - 38mm x 2.65mm
• Min. Headlap (Roof) - 65mm
• Min. Headlap (Vertical) - 37.5mm
• Max. Gauge (Roof) - 100mm
• Max. Gauge (Vertical) - 115mm
• Battens Required (Net, Roof) - 10.0 lin.m/m²at 100mm Gauge
• Battens Required (Net, Vertical) - 8.7 lin.m/m² At 115mm Gauge
• Batten Size Recommended - 38mm x 25mm For Rafters/Supports Not Exceeding 600mm Centres (Fixed To BS 5534)
