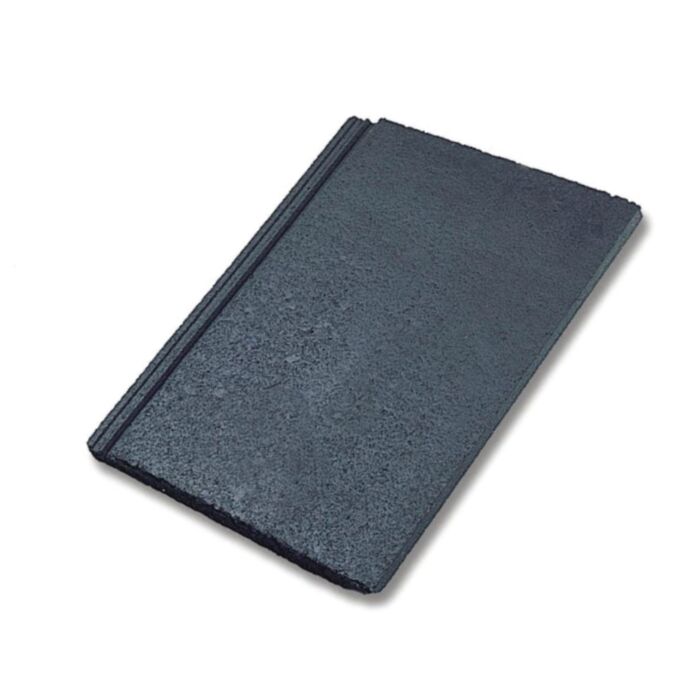

The Marley Modern roof tile is a hugely popular, flat, single-lap interlocking tile, ideal for new builds, extensions and home renovations.

Features:

• This large format tile features a traditional flat profile design with a sleek, slate like appearance.
• A major benefit of the Marley Modern is that it can be used on roof pitches as low as 17.5°.
• Modern should be laid broken bond. The required broken bond pattern is created by the introduction of half slates, to form verges and abutments in alternate courses.
• Purpose made half slates are available and can be formed on site by cutting along the scoreline.

Technical data:

• Brand - Marley
• Product Type - Modern Roof Tile
• Material - Concrete
• Colour - Grey
• Finish - Smooth
• Width - 330mm
• Length - 420mm
• Weight Of Tiling (Approx.) 50kg/m2 (0.46 kN/m2) at 75mm Headlap
• Min. Pitch (Smooth) - 22.5° (75mm Headlap) / 17.5 (100mm Headlap)
• Max. Pitch - 90°
• Covering Capacity - 9.9 Tiles/m² (75mm Headlap) / 10.7 Tiles/m² (100mm Headlap)
• Tile Nails - 50mm x 3.35mm
• Fixing Clips- Eaves, Verge And Tile Clips
