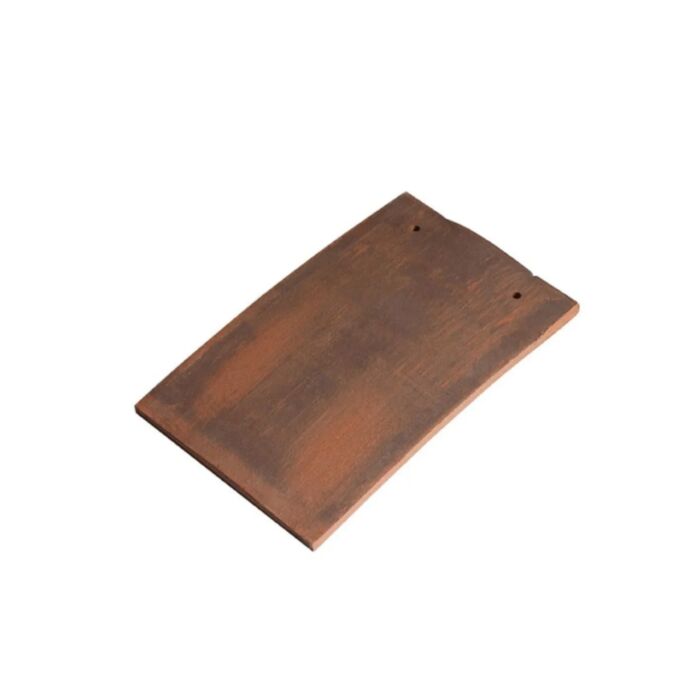

Marley Acme Clay Double Camber Plain Roof Tile Smooth Burnt Flame

The Acme Double Camber clay tiles create a distinctive roofing solution with their rich texture and gentle curves, seamlessly accentuating the roof’s striking undulations, transcending the norms of conventional roofing. The outcome is a distinct architectural masterpiece that harmoniously complements neighbouring traditional village residences, radiating elegance and a welcoming ambiance.

Features:

• With a longitudinal and latitudinal camber, the unique double curve presents the designer with the opportunity to create highly textured roofscapes with accentuated light and shade.
• Precision manufacturing at its finest: all the benefits of a strong, natural material with cutting-edge modern production techniques.
• Compatibility, functionality and beautiful aesthetics for the perfect finish across every roof style.
• With first-rate environmental credentials, Acme Double Camber Clay Plain tiles could be the solution for your roofing project.
• Compatible with Marley roof systems and with Marley SolarTile®.
• Manufactured in the heart of Staffordshire, clay plain tiles benefit from using what’s widely considered to be the strongest and most durable natural clay in the market - Staffordshire Etruria Marl.

Technical data:

• Brand - Marley
• Range - Acme
• Product Type - Double Camber Plain Roof Tile
• Material - Clay
• Colour - Red
• Finish - Smooth
• Width - 165mm
• Length - 265mm
• Minimum Pitch - 35°
• Maximum Pitch - 90°
• Minimum Headlap - 65mm (Roof) / 35mm (Vertical)
• Maximum Gauge 100mm (Roof) / 115mm (Vertical)
• Cover Width - 165mm (Nominal)
• Tile Thickness - 11mm (Nominal)
• Covering Capacity (Net) - 60 Tiles/m² At 100mm Gauge (Roof) / 53 Tiles/mm² At 115mm Gauge (Vertical)
• Weight of Tiling - 64kg/m² (0.63 kN/m²) At 100mm Gauge (Roof) / 56kg/m² (0.55 kN/m²) At 115mm Gauge (Vertical)
• Battens Required (Net) - 10.0 lin.m/m² At 100mm gauge (Roof) / 8.7 lin.m/m² At 115mm Gauge (Vertical)
• Batten Size Recommended - 38mm x 25mm for Rafters / Supports not exceeding 600mm centres (fixed to BS 5534)
• Tile Nails - 38mm x 2.65mm

Standards & Certifications:

• Accreditation to the BES 6001 Framework Standard for Responsible Sourcing means that projects using our clay tiles can get extra credits under BREEAM.
• Authority BS EN 1304
• Green guide rating A+ (Element ref: 812410006)
