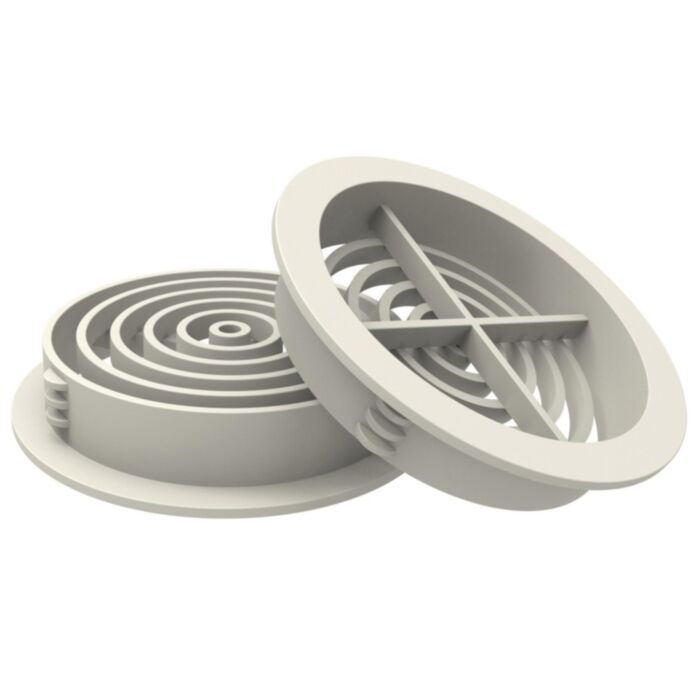

Manthorpe Soffit Vent White 15.5x80mm

Name: Manthorpe Soffit Vent White 15.5x80mm
Brand: Manthorpe
SKU: 100019534
Price: 1.91 GBP
Availability: InStock

Manthorpe Soffit Vent White 15.5x80mm

In stock

Product Code

100019534

Features: Can be slotted into the soffit board prior to installation for new build situations or just as easily retro-fitted into existing soffits. Standard fixing for th...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£1.91 £1.59

Select branch to check stock

Select postcode to see availability

Product Information

Features:

Can be slotted into the soffit board prior to installation for new build situations or just as easily retro-fitted into existing soffits.
Standard fixing for this product is a simple push twist action into a 70mm hole drilled in the soffit board.
The vent features evenly spaced slots small enough to prohibit large insects gaining access but wide enough not to be blocked by debris, paint or water droplets.
Can be used to achieve 10,000mm²/m or 25,000mm²/m of free airflow.

Technical data:

Material - PVC
Colour - White
Diameter - 80mm
Fitting Hole Diameter - 70mm
Free Vent Area - 2,150mm²
Spacing for 10mm Airflow - 200mm
Spacing for 10mm Airflow - 86mm (staggered)
Manufacturing Process - Injection Moulded
Single Person Installation Possible - Yes
Brand - Manthorpe

Standards/Certifications:

BRE Digest 262/270
BS5250
Building Regulations F2
NHBC - Good practice Guide
NHBC - Standards 7.4

Manufacturer Code
G700WH
Delivery Only
No
Brand
Manthorpe
Style
Soffit
Product Type
Soffit Vent
Material
PVC
Colour
White
Diameter
200mm
Width
N/A
Height
N/A
Depth
70mm
Length
N/A

Shipping and Returns

Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.

Click here for the MP Moran return policy

Datasheets

Manthorpe Soffit Vent TDS
