Blum Pack C CLIP Top Cranked Cabinet Hinge 170° 1 Pair

Blum Pack C CLIP Top Cranked Cabinet Hinge 170° 1 Pair

Name: Blum Pack C CLIP Top Cranked Cabinet Hinge 170° 1 Pair
Brand: Knaggs
SKU: 100015921
Price: 18.41 GBP
Availability: InStock

Blum Pack C CLIP Top Cranked Cabinet Hinge 170° 1 Pair

In stock

Product Code

100015921

Blum clip-top hinges simply clip to mounting plates - No tools required allowing speedy assembly. Features: Blum clip-top hinges simply clip to mounting plates - No tools r...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£18.41 £15.34

Select branch to check stock

Select postcode to see availability

Product Information

Blum clip-top hinges simply clip to mounting plates - No tools required allowing speedy assembly.

Features:

Blum clip-top hinges simply clip to mounting plates - No tools required allowing speedy assembly.
Use 3.5 or 4.0 gauge chipboard screws when attaching to cabinet sides, there is an option to use a third fixing point for wide angled hinges or heavy doors.
All metal hinge, nickel plated.
170° opening angle.
3 dimensional front adjustment.

Technical data:

Material - Steel
Finish - Nickel Plated
Fixing - Chipboard Screws
Mounting plate system - CLIP
Shape of mounting plate - Cruciform
Height adjustment - 3mm in elongated hole
Opening angle - 170°
Door thicknesses - 16mm to 22mm
Boss type - Screw On
Boss bore size - 35mm x 11mm Deep
Adjustment - 3 Way with Spiral-Tech
Side adjustment - +/-2mm
Depth adjustment - +3/-2mm
Distance between fixing positions - 32mm
Distance cabinet front edge to first fixing position - 37mm Pack

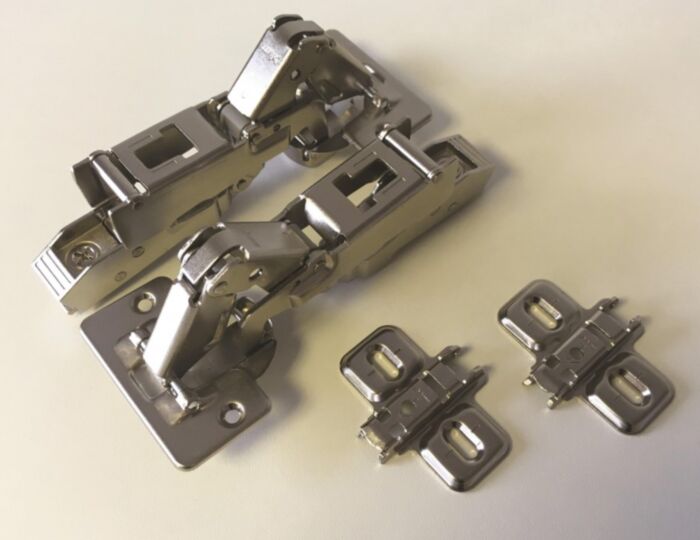

Pack consists of:

2 x 71T6550 - Blum 170° Clip-On Overlay Hinge
2 x 173L610 - Blum Clip-On Mounting Plate, screw-fix, 0mm

Manufacturer Code
PACKC
Delivery Only
No
Brand
Blum
Range
Blum
Style
Clip On
Product Type
Cabinet Hinge
Material
Steel
Finish
Nickel Plated
Quantity in Pack
2pk
