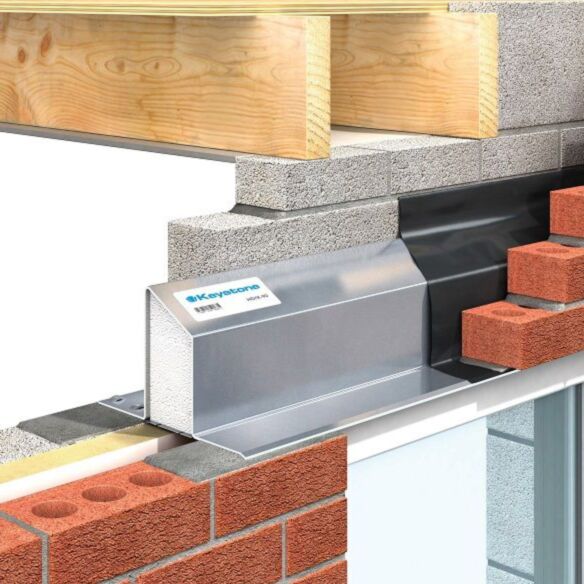

The Keystone HD/K-90 1200mm is a heavy-duty cavity wall lintel designed to support openings with cavity widths of 90-105mm in both inner and outer leaf blockwork. It is specifically engineered to handle heavy loads, making it suitable for a variety of demanding construction projects.
Features:
The Keystone HD/K-90 1200mm is constructed from high-grade galvanized steel, ensuring exceptional strength and durability. This makes it ideal for supporting heavy loads over large openings.
The lintel’s design accommodates cavity widths ranging from 90mm to 105mm, providing versatility for various structural applications.
The lintel can be used with both inner and outer leaf blockwork or stonework.
The lintel is designed for straightforward installation, ensuring efficient and cost-effective construction processes.
Technical data:
Brand - Keystone
Range - HD/K-90
Product Type - Heavy Load Cavity Lintel
Material - Mild Steel
Finish - Galvanised
Thickness - 2.9mm
Height - 110mm
Width - 283mm
Length - 1200mm
Cavity Range - 90-105mm
Outer Leaf - 102mm
Inner Leaf - 100mm
Total UDL kN 3:1 - 30
Total UDL kN 19:1 - 22
Standards & Certifications:
Have been tested as a composite unit with surrounding masonry, built in accordance with BS EN 1996-2:2006. Structural Performance in accordance with the requirements of standards BS EN 846-9:2016 and BS EN 845-2:2013+A1:2016.
Fire Performance in accordance with BS 476: Part20: 1987.
If no Data and Safety sheets are visible here please send an email request to [email protected]
