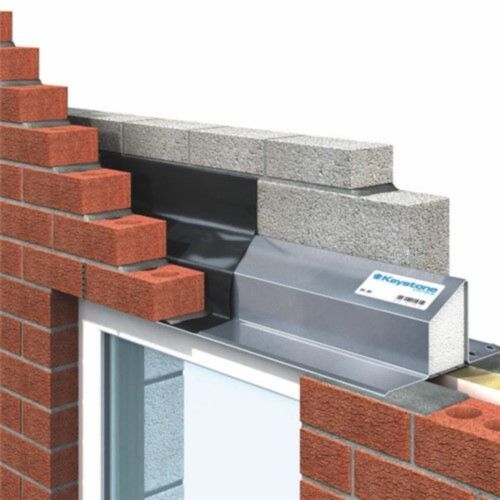

The Keystone S/K-90 900mm cavity wall lintel is designed to support openings with a cavity width of 90mm to 105mm, depending on the opening size. Features: The Keystone S/K...Read more
The Keystone S/K-90 900mm cavity wall lintel is designed to support openings with a cavity width of 90mm to 105mm, depending on the opening size.
Features:
The Keystone S/K-90 900mm is easy to install and can be used with a variety of blockwork types.
Standard duty cavity wall lintel.
Suitable for openings with 90-105mm cavity widths.
Manufactured from high-quality steel.
Galvanised to protect against corrosion.
Technical data:
Brand - Keystone
Range - SK/90
Product Type - Standard-Duty Lintel
Material - Mild Steel
Finish - Galvanised
Thickness - 1.6mm
Height - 88mm
Width - 283mm
Length - 900mm
Cavity Range - 90-105mm
Outer Leaf - 102mm
Inner Leaf - 100mm
Total UDL kN 3:1 - 12
Total UDL kN 19:1 - 10
Standards & Certifications:
Have been tested as a composite unit with surrounding masonry, built in accordance with BS EN 1996-2:2006. Structural Performance in accordance with the requirements of standards BS EN 846-9:2016 and BS EN 845-2:2013+A1:2016.
Fire Performance in accordance with BS 476: Part20: 1987.
