Keystone Cavity Lintel S/K-90 1200mm

Name: Keystone Cavity Lintel S/K-90 1200mm
Brand: Keystone
SKU: 100012515
Price: 73.93 GBP
Availability: InStock

Keystone Cavity Lintel S/K-90 1200mm

In stock

Product Code

100012515

The Keystone S/K-90 is a standard load lintel used to support openings with cavity widths of 90-105mm. Features: Manufactured from high quality grade pre-galvanised mild st...Read more

Your Price

£73.93 £61.61

Select branch to check stock

Select postcode to see availability

Product Information

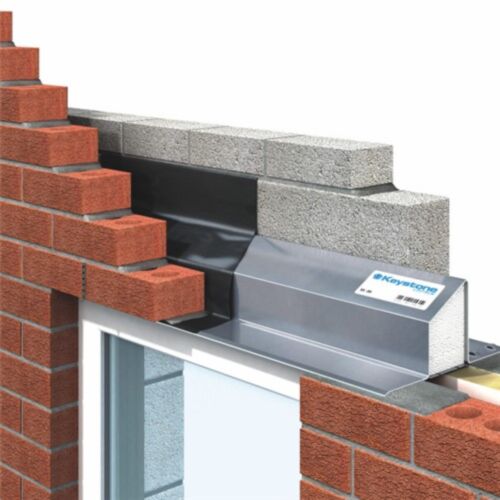

The Keystone S/K-90 is a standard load lintel used to support openings with cavity widths of 90-105mm.

Features:

Manufactured from high quality grade pre-galvanised mild steel.
Blockwork built tight against inner face of the lintel.
It is recommended to place mortar bed on top of blockwork before floor units are laid to provide even distribution of load.
It is recommended that lintels are propped to facilitate speed of construction.

Technical data:

Brand - Keystone
Range - S/K-90
Product Type - Standard Load Cavity Lintel
Material - Mild Steel
Finish - Galvanised
Thickness - 1.6mm
Height - 87mm
Length - 1200mm
Cavity Range - 90-105mm
Outer Leaf - 102mm
Inner Leaf - 100mm
Total UDL kN 3:1 - 12
Total UDL kN 19:1 - 10

Standards & Certifications:

Have been tested as a composite unit with surrounding masonry, built in accordance with BS EN 1996-2:2006.
Structural Performance in accordance with the requirements of standards BS EN 846-9:2016 and BS EN 845-2:2013+A1:2016.
Fire Performance in accordance with BS 476: Part20: 1987
BBA Approval Inspection Testing Certification 98/3493

Manufacturer Code
KS912
Delivery Only
No
Brand
Keystone
Range
S/K-90
Product Type
Cavity Lintel
Material
Mild Steel
Colour
Steel
Finish
Galvanised
Thickness
1.6mm
Width
283mm
Height
87mm
Length
1200mm
SWL (Safe Work Load)
3:1 12kN / 19:1 10kN
Duty
Standard
