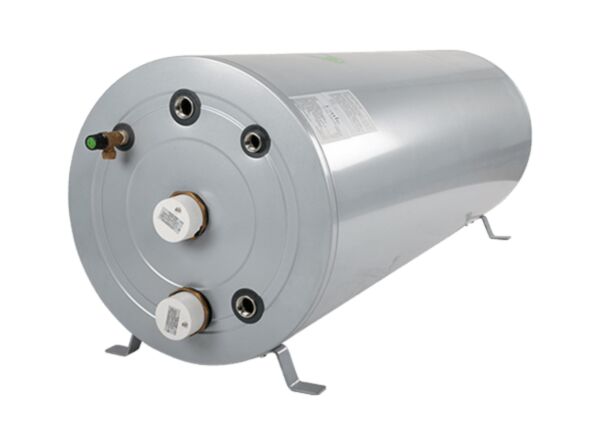

Joule Cyclone 200ltr ErP Indirect Unvented Horizontal Cylinder Standard C Stainless Steel 600x1085mm

Joule’s Cyclone pre-insulated pressurised Hot Water Cylinders are built on quality and performance.

Features:

• This cylinder is to be horizontally positioned and comes with a cradle that is not only included but pre-fitted - This cradle can be easily removed if the hot water cylinder needs to squeeze through a tight access hatch.
• The Cyclone brand is noted for its attractive grey finish - Noticeably there is no cheap plastic used on the outer casing.
• Inside only the best materials are used, duplex stainless steel body, 316L grade stainless fittings and coils.
• For heat pump ready cylinders Joule’s coil quality sets them apart.
• The cylinder is manufactured from Duplex LDX 2101.
• The cylinder is tested to 10Bar with a maximum operating pressure of 5Bar.
• The cylinder should have a standing loss of no more than 81W.

Technical data:

• Cylinder material - Stainless Steel Duplex LDX 2101
• Coil material - Stainless steel tube AISI 316L
• Casing - Painted galvanised carbon steel DX51D
• Capacity - 200ltr
• Length - 1085mm
• Diameter - 600mm
• Weight (empty) - 46kg
• Weight (full) - 243kg
• Thermal insulation - Polyurethane foam CFC-Free and HCFC free
• Maximum operating pressure - 5Bar
• Test pressure - 10Bar
• Maximum working temperature - 95°C
• Heating elements - 1 No. Incoloy Immersion
• Heat loss - 81W
• Heat up time - 31 minutes
• ErP efficiency - 35%
• ErP efficiency rating - C

Unvented kit components

• Expansion Vessel
• Inlet Control Group
• Zone Valve
• Cylinder Thermostat
• Tundish
