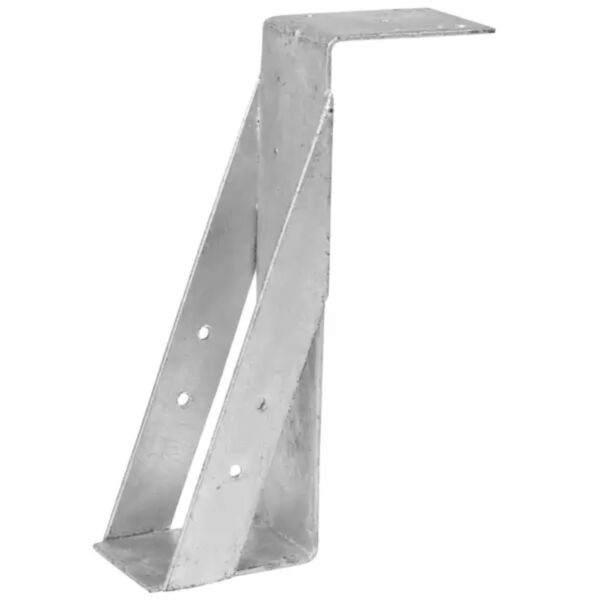

Joist hanger ranges offer very strong and effective methods of supporting timber joists, built in to brick or block walls. They can also be used in timber to timber connections with an onsite adjustment as well as attaching joists to steel beams.

Features:

• Manufactured from mild steel and galvanised after manufacture.
• The joist hanger should have a minimum of 3 courses (675mm) of solid block work on top of the joist flange, and any masonry above or below the hanger must be fully cured before any load is added.
• The back plate of the hanger must be tight and flat against the wall.

Technical data:

• Product Type - Joist Hanger
• Material - Mild Steel
• Finish - Galvanised
• Width - 100mm
• Height - 150mm

Please note:

• Timber Joists must be cut accurately to ensure a tight fit against the hanger back plate
