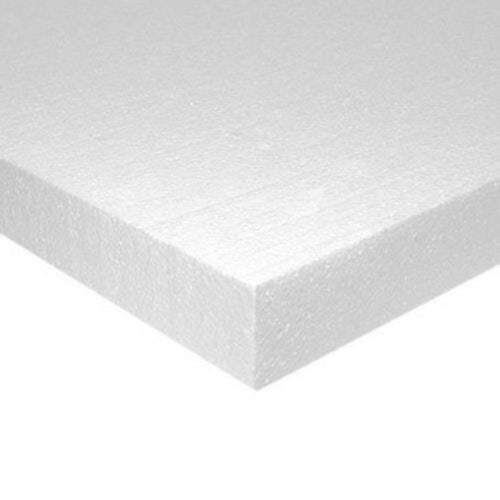

Jablite Jabfloor 70 Floor Insulation 100x1200x2400mm
Jablite Jabfloor 70 Floor Insulation 100x1200x2400mm

Jablite Jabfloor 70 Floor Insulation 100x1200x2400mm

Name: Jablite Jabfloor 70 Floor Insulation 100x1200x2400mm
Brand: Jablite
SKU: 100004271
Price: 31.49 GBP
Availability: InStock

Jablite Jabfloor 70 Floor Insulation 100x1200x2400mm

In stock

Product Code

100004271

Jabfloor is a floor insulation board that achieves the required U-value and compressive performance on a range of different floor applications. Features: 0.038 Thermal Cond...Read more

Your Price

£31.49 £26.24

Select branch to check stock

Select postcode to see availability

Product Information

Jabfloor is a floor insulation board that achieves the required U-value and compressive performance on a range of different floor applications.

Features:

0.038 Thermal Conductivity.
Provides cost effective insulation for the lifetime of the building.
Excellent compression properties.
100% recyclable.
Achieves an A+ rating in the BRE Green Guide to Specification.
Available with Class E fire retardant additive.
Flood proof.
Lightweight and easy to handle.
Is non-toxic and biologically inert.

Technical data:

Brand - Jabfloor
Product Type - Floorshield
Material - Polystyrene (EPS)
Thickness - 100mm
Width - 1200mm
Length - 2400mm
Thermal Conductivity - (Lambda) 0.038W/mK
Design load at 1% nominal compression - 20kPa
Design load at 10% nominal compression - 70kPa
Nominal Density - 15kg/m³
Compressive Strength 1% - 20kN/m²
Compressive Strength 10% - 70kN/m²
Shear Strength - 55kN/m²
Shear Modulus - 2100kN/m²

Applications Domestic:

Below ground supported slab.
Above slab below chipboard.
Above slab below screed.
Precast suspended concrete.
Cold Store.

Standards & Certifications:

BBA Certificate number 87/1796. This Certificate covers Grades 70, 100 and 150
NHBC Standards, Chapters 5.1 Substructure and ground bearing floors and 5.2 Suspended ground floors
European Standard BS EN 13163 : 2012.
Manufactured in production facilities which are certified to ISO 9001.
ISO 14001 certified.
BS EN 13163:2012.

Manufacturer Code
IN-000000874
Delivery Only
No
Brand
Jabfloor
Product Type
Floor Insulation
Material
Polystyrene (EPS)
Thickness
100mm
Width
1200mm
Length
2400mm

Shipping and Returns

Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.
