The Imex i88G Green Beam Rotating Lasers is packed with our most advanced technology combined with a highly visible heavy duty and robust, water and dust-proof case.  The sensor-based self-levelling system utilising a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy. All Imex I Series rotating lasers are inspected and calibrated by the manufacturer before dispatch.

Features:

• Robust construction tough horizontal / vertical laser level.
• Horizontal / Vertical self-levelling (electronic). 600m range. Dual manual grade slope.
• 9Ah lithium-ion battery - approx. 40hrs of run time
• USB quick charge port with car charger
• LRX10 Digital Detector in mm reading (German made)
• 90mm Detector reading ultra-fine, fine, medium, coarse and ultra course.
• Scan Mode - This allows for part beam rotation in selected working environments, i.e. on interior walls, and busy work sites where other laser interference may be present.
• Various scan lengths and rotation placement.
• Dual Grade - Grade slope to 5° (8.8%) in two directions, X and Y axis Simultaneously for true grade control. Ideal for pipe layout or concrete slab falls.
• Plumb Spot - Top and bottom plumb spot beam to assist in setups over a point.
• Accuracy - +/- 1.5mm @ 30 metres for excellent results every time.

Technical data:

• Brand - Imex
• Product Type - Rotating Laser Level & Receiver Set
• Self Levelling Range - +/-5°
• Working Distance - 600mtr Diameter
• Scan Mode - 0°, 10°, 45°, 90°, 180°
• Slope Mode - Single manual grade to 5° 8.8%
• Accuracy - 1.5mm @ 30mtr
• Rotation Speeds - 0, 60, 120, 300, 600rpm
• IP Rating - IP66
• Light Source - Green 535nm Class II
• Power - 9Ah 3.7V Lithium-Ion
• Detector - LRX10 Double Sided
• Working Time - Continuous Use - 40hrs Approx.
• Charging Time - 4hrs In Unit Or Removed From Unit
• Weight - 2.48kg (Unit Only)
• Remote Control - iCR8
• Warranty - 5 Years

Technical data for the LRX10 Detector:

• Detection Window Pick Up - 90mm -30mm To +60mm
• Working Range - 300mtr Radius
• Detectable Spectrum - Red, Green Laser
• Measurement Accuracy - Ultra Fine 0.5mm / Fine 1.0mm / Medium 2.0mm / Coarse 5.0mm / Ultra Course 10.0mm
• Magnets - 2 x Topface
• Drop Test on Concrete - 1.5mtr Height
• Detector IP Rating - IP67
• Detector Power - 1 x AA > 50hrs Run
• Warranty - 3 Years

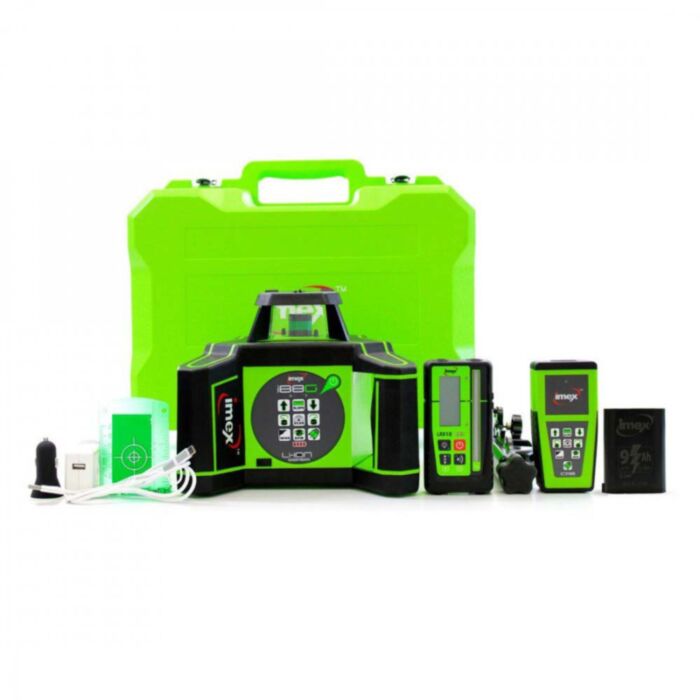

Kit consists of:

• i88G laser level
• Hard carry case
• LRX10 detector receiver & bracket
• USBC charging cable
• Wall charger adaptor
• Vehicle charger adaptor
• Magnetic target plate
• 2x 9.0Ah Li-Ion batteries
