Imex i66R Rotating Laser Level & LRX6 Receiver Set

The Imex i66R Red Beam Rotating Laser is a class leader in economical rotating laser levels and incorporates the robust casing and technology of the i77R & i88G models in an efficient simple-to-use package. The leader in value for everyday laser levelling. All Imex I Series rotating lasers are inspected and calibrated by the manufacturer before dispatch.

Features:

• Featuring a huge 400mtr diameter range.
• Rubber sheath protection and heavy-duty lighthouse cover for superior shockproof and weatherproofing.
• Robust construction tough horizontal laser level.
• Self-levelling (electronic).
• 9Ah lithium-ion battery - approx. 40 hours run time.
• USB quick charge port
• Out of level warning light.
• LRX6 Digital Detector in mm reading German mode.
• 60mm Detector reading fine, medium, coarse setting.
• 30 second set-up time. Place on a tripod, press one button and the beam begins.
• Fully enclosed laser housing for extra dust and splash proofing.

Technical data:

• Brand - Imex
• Product Type - Rotating Laser Level & Receiver Set
• Self Levelling Range - +/-5Degree
• Working Distance - 400mtr Diameter
• Accuracy - 2.0mm @ 30mtr
• Rotation Speeds - 600rpm
• IP Rating - IP66
• Light Source - Red Laser Diode, 635nm Class II
• Power - 9Ah 3.7V Lithium-Ion
• Detector - LRX6 mm Display
• Working Time - Continuous Use - 40hrs Approx.
• Charging Time - 4hrs In Unit Or Removed From Unit
• Weight - 2.48kg (Unit Only)
• Warranty - 5 Years

Technical data for the LRX6 Detector:

• Detection Window Pick Up - 60mm +30mm To -30mm
• Working Range - 300mtr Radius
• Detectable Spectrum - Red, Green Laser
• Measurement Accuracy - Fine 1.0mm / Medium 2.0mm / Coarse 5.0mm
• Magnets - 2 x Topface
• Drop Test on Concrete - 1.5mtr Height
• Detector IP Rating - IP67
• Detector Power - 1 x AA > 50hrs Run
• Warranty - 3 Years

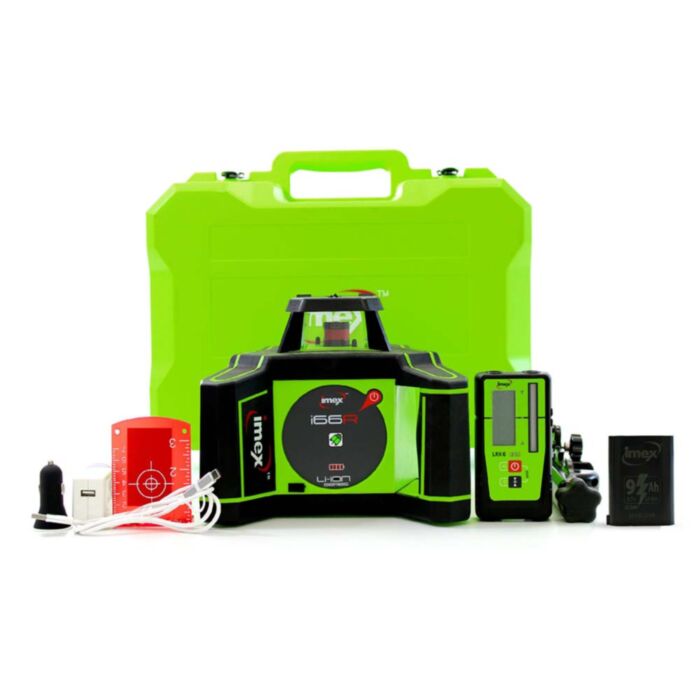

Kit consists of:

• i66R laser level
• Hard carry case
• LRX6 detector receiver & bracket
• USB charging cable
• Wall charger adaptor
• Vehicle charger adaptor
• Magnetic target plate
• 2x 9.0Ah Li-Ion batteries
