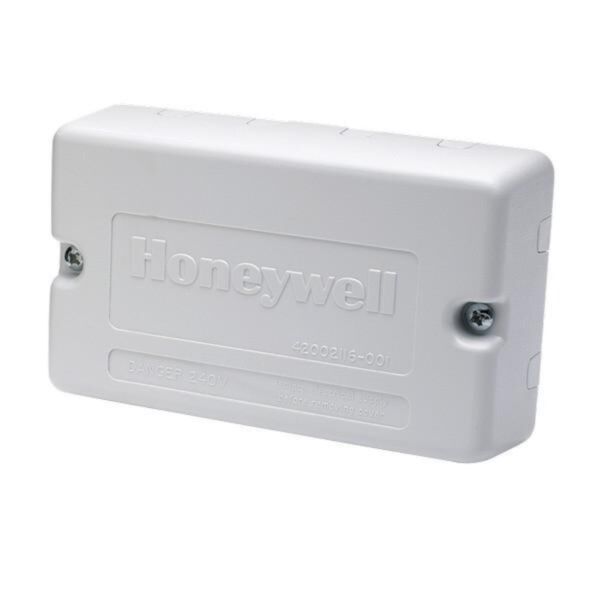

Honeywell Wiring Centre

Name: Honeywell Wiring Centre
Brand: Honeywell
SKU: 100005983
Price: 22.2 GBP
Availability: InStock

In stock

Product Code

100005983

Designed to simplify the wiring of Sundial Plan central heating installations. Features: Can be used with C, S and Y Plan systems and has single terminal connections which ...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£22.20 £18.50

Select branch to check stock

Select postcode to see availability

Product Information

Designed to simplify the wiring of Sundial Plan central heating installations.

Features:

Can be used with C, S and Y Plan systems and has single terminal connections which are clearly labelled.
Provision is made for basic and pump overrun boilers.
Suitable for all 5Amps rated applications.

Technical data:

Number of terminals - 37: 1.5mm²
Maximum current PCB - 5Amp 230V 50Hz
Fuse rating - 2Amps 230V 50Hz
Cable clamp capacity - 4 x 1.5mm² twin & earth per clamp (2 off)
Ambient temperature rating - T50
Fixing - 3 fixing holes for number 8 screws
EC Directive - Conforms 2006/95/EC
Brand - Honeywell

Manufacturer Code

42005748-001
Brand

Honeywell
Brand

Honeywell

Shipping and Returns

Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.

Click here for the MP Moran return policy

Data and Safety Sheets

If no Data and Safety sheets are visible here please send an email request to customersupport@mpmoran.co.uk
