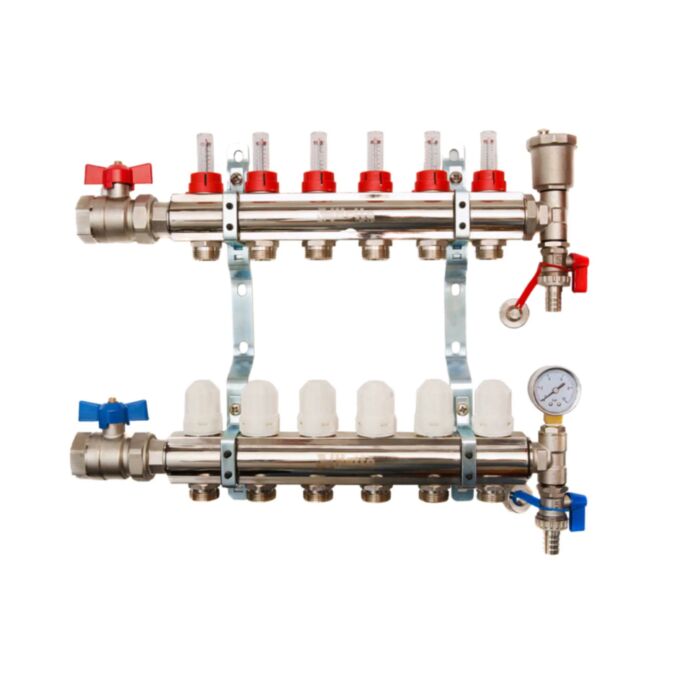

The Hetta Pre-Assembled 6 Port Manifold Nickel Plated is expertly designed for efficient underfloor heating distribution. Featuring durable nickel plating, it includes isolating ball valves, adjustable flow meters, and automatic air vents. With a compact size of 270mm high and 433mm wide, it operates at a maximum pressure of 6Bar and temperature of 105°C, ensuring reliable performance for your heating circuits.

Features & Benefits:

• Pre-assembled design for easy installation.
• Six ports for efficient distribution of underfloor heating.
• Includes isolating ball valves for precise control.
• Features adjustable flow meters for optimal performance.
• Equipped with fill and drain points for convenience.
• Automatic air vents to prevent air locks in the system.
• Durable nickel plating for enhanced corrosion resistance.
• Compact dimensions for versatile installation options.

Applications:

• Distributes heating flow between multiple underfloor heating circuits.
• Facilitates easy installation with pre-installed brackets.
• Includes isolating ball valves for each port.
• Equipped with adjustable flow meters for precise control.
• Features fill and drain points for maintenance convenience.
• Incorporates automatic air vents to prevent air locks.

Technical Data:

• Brand - Hetta
• Product Type - Pre-Assembled Distribution Manifold
• Material - Brass
• Finish - Nickel Plated
• Colour - Silver
• Height - 270mm
• Width - 433mm
• Maximum Working Pressure - 6Bar
• Maximum Working Temperature - 105°C
• Maximum Test Pressure - 10Bar
• Threads - 1" Heating pipe outlet
• Outlet Thread - ¾" Eurokonus
• Number of Ports - 6

Transform your underfloor heating system with the Hetta Pre-Assembled 6 Port Manifold Nickel Plated, engineered for efficiency and ease, available now online or at our London shops!
