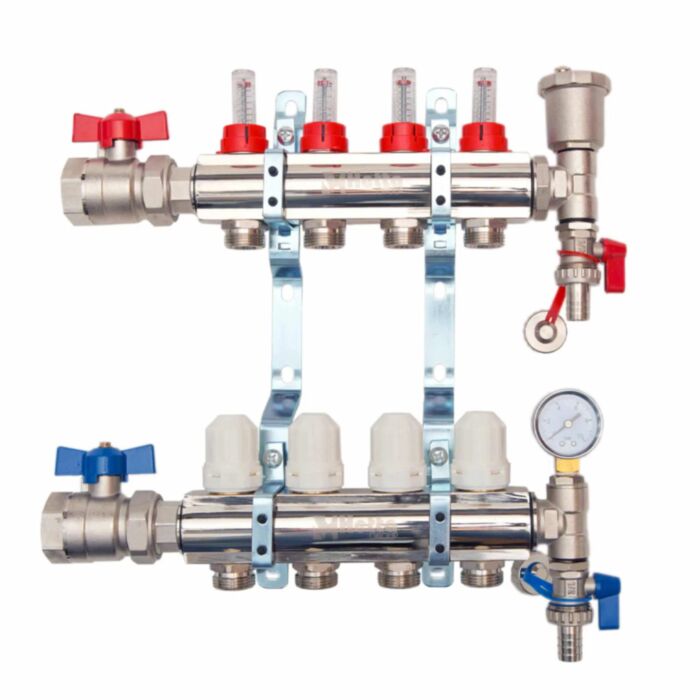

The Hetta Pre-Assembled 4 Port Manifold Nickel Plated is expertly designed for efficient underfloor heating distribution. Featuring durable nickel plating, it includes isolating ball valves, adjustable flow meters, and automatic air vents. With a compact size of 270mm high and 333mm wide, it operates at a maximum pressure of 6Bar and temperature of 105°C, ensuring reliable performance for your heating needs.

Features & Benefits:

• Pre-assembled design for easy installation.
• Four ports for efficient underfloor heating distribution.
• Includes isolating ball valves for flow control.
• Features adjustable flow meters for precise heating management.
• Equipped with fill and drain points for convenient maintenance.
• Automatic air vents to prevent air locks in the system.
• Durable nickel plating for enhanced corrosion resistance.
• Compact dimensions for versatile installation options.

Applications:

• Used to distribute heating flow in underfloor heating systems.
• Facilitates connection of multiple underfloor heating circuits.
• Enables easy maintenance with isolating ball valves and automatic air vents.
• Compatible with various heating pipe sizes for flexible installation.
• Designed for high-pressure and high-temperature heating applications.

Technical Data:

• Brand - Hetta
• Product Type - Pre-Assembled Distribution Manifold
• Material - Brass
• Finish - Nickel Plated
• Colour - Silver
• Height - 270mm
• Width - 333mm
• Maximum Working Pressure - 6Bar
• Maximum Working Temperature - 105°C
• Maximum Test Pressure - 10Bar
• Threads - 1" Heating pipe outlet
• Outlet Thread - ¾" Eurokonus
• Number of Ports - 4

Transform your underfloor heating system today with the Hetta Pre-Assembled 4 Port Manifold Nickel Plated, available now online or in our London shops, designed for effortless installation and optimal flow distribution!
