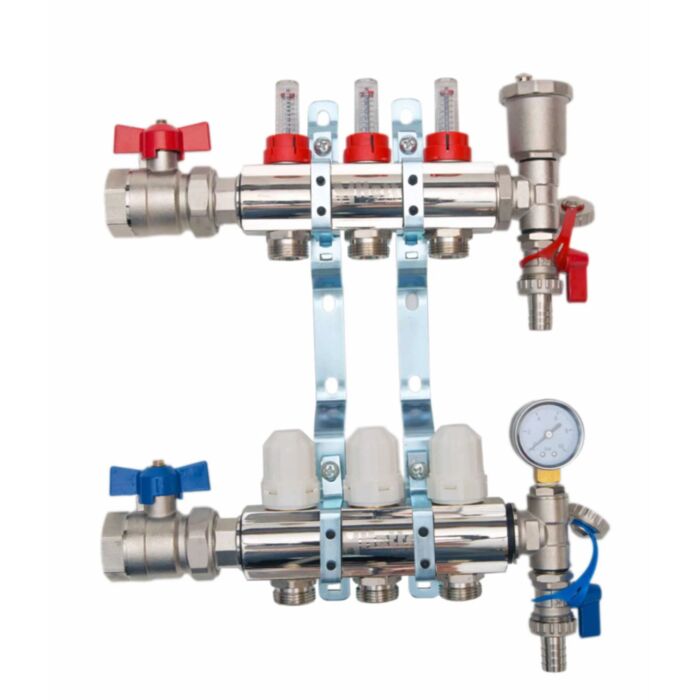

The Hetta Pre-Assembled 3 Port Manifold Nickel Plated is expertly designed for efficient underfloor heating distribution. Featuring a durable nickel plating, this manifold includes pre-installed installation brackets, isolating ball valves, adjustable flow meters, and automatic air vents. With a compact size of 270mm high and 283mm wide, it operates at a maximum pressure of 6Bar and a temperature of 105°C, ensuring reliable performance for your heating needs.

Features & Benefits:

• Pre-assembled design for easy installation.
• Three ports for efficient underfloor heating distribution.
• Includes isolating ball valves for flow control.
• Features adjustable flow meters for precise heating management.
• Equipped with fill and drain points for convenient maintenance.
• Automatic air vents to prevent air locks in the system.
• Durable nickel plating for enhanced corrosion resistance.
• Compact dimensions for versatile installation options.

Applications:

• Distributes heating flow between underfloor heating circuits.
• Connects multiple heating circuits in a pre-assembled format.
• Facilitates easy installation with pre-installed brackets.
• Includes isolating ball valves for flow control.
• Equipped with adjustable flow meters for precise distribution.
• Features fill and drain points for maintenance.
• Incorporates automatic air vents to prevent air locks.

Technical Data:

• Brand - Hetta
• Product Type - Pre-Assembled Distribution Manifold
• Material - Brass
• Finish - Nickel Plated
• Colour - Silver
• Height - 270mm
• Width - 283mm
• Maximum Working Pressure - 6Bar
• Maximum Working Temperature - 105°C
• Maximum Test Pressure - 10Bar
• Threads - 1" Heating pipe outlet
• Outlet Thread - ¾" Eurokonus
• Number of Ports - 3

Transform your underfloor heating system with the Hetta Pre-Assembled 3 Port Manifold Nickel Plated, engineered for efficiency and ease, available now online or at our London shops!
